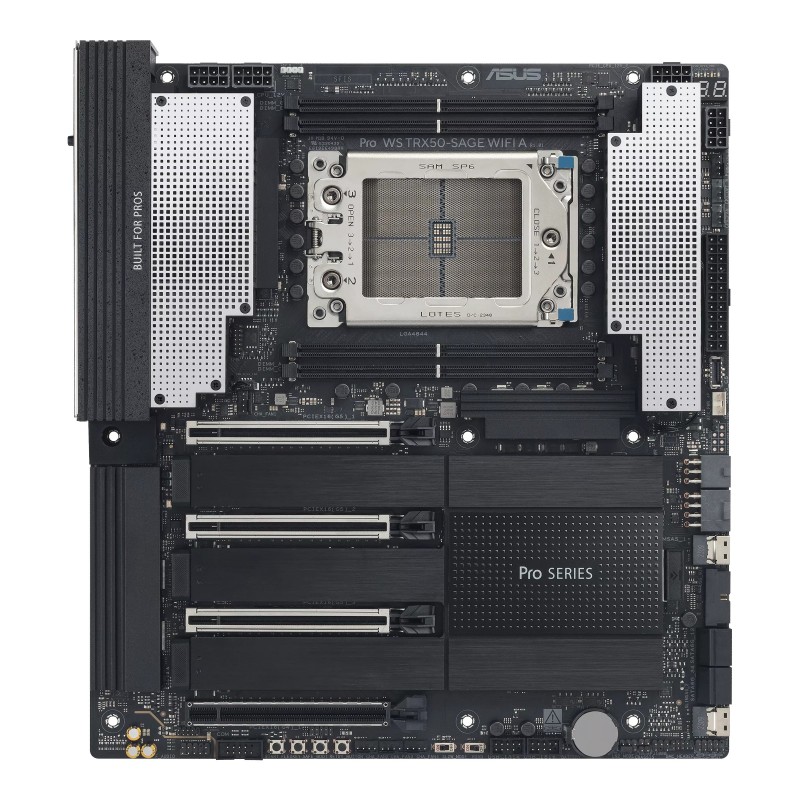

ASUS PRO WS TRX50-SAGE WIFI A AMD TRX50 Socket sTR5 CEB

ASUS PRO WS TRX50-SAGE WIFI A. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 1 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, LAN controller: Intel I226-LM, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: Workstation, Motherboard form factor: CEB, Motherboard chipset family: AMD

Processor manufacturer	AMD
Processor socket	Socket sTR5
Compatible processor series	AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series
Supported processor sockets	Socket sTR5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	1 TB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC
Supported storage drive interfaces	M.2, SATA III, SlimSAS
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	10
RAID support	Yes
RAID levels	0, 1, 5, 10
Parallel processing technology support	Not supported
On-board graphics card	No
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
USB 3.2 Gen 2x2 connectors	1
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes
Number of temperature sensor headers	1
RGB LED pin header	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
HDMI ports quantity	0
DVI-D ports quantity	0
USB4 Gen 3×2 ports quantity	2
DisplayPorts quantity	2
WiFi-AP antenna jack	1
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet
LAN controller	Intel I226-LM
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Component for	Workstation
Motherboard form factor	CEB
Motherboard chipset family	AMD
Motherboard chipset	AMD TRX50
Audio output channels	5.1 channels
Audio chip	Realtek ALC1220P
Product color	Aluminum, Black
Windows operating systems supported	Windows 11
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	3
Number of M.2 (M) slots	4
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2580
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	5.0
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Package width	12.6" (320 mm)
Package depth	15" (380 mm)
Package height	3.94" (100 mm)
Package weight	10.7 lbs (4.85 kg)
Width	12" (305 mm)
Depth	11" (280 mm)
Cables included	DisplayPort, SATA
Antenna included	Yes
mSATA ports quantity	0
