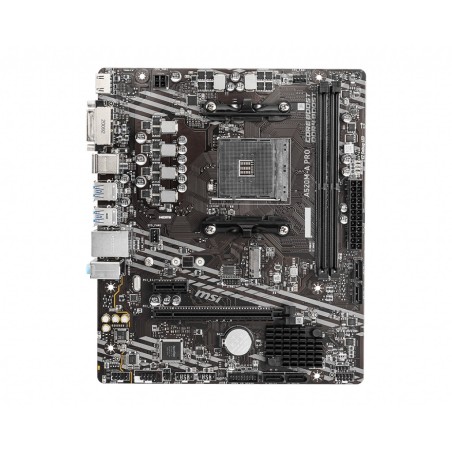

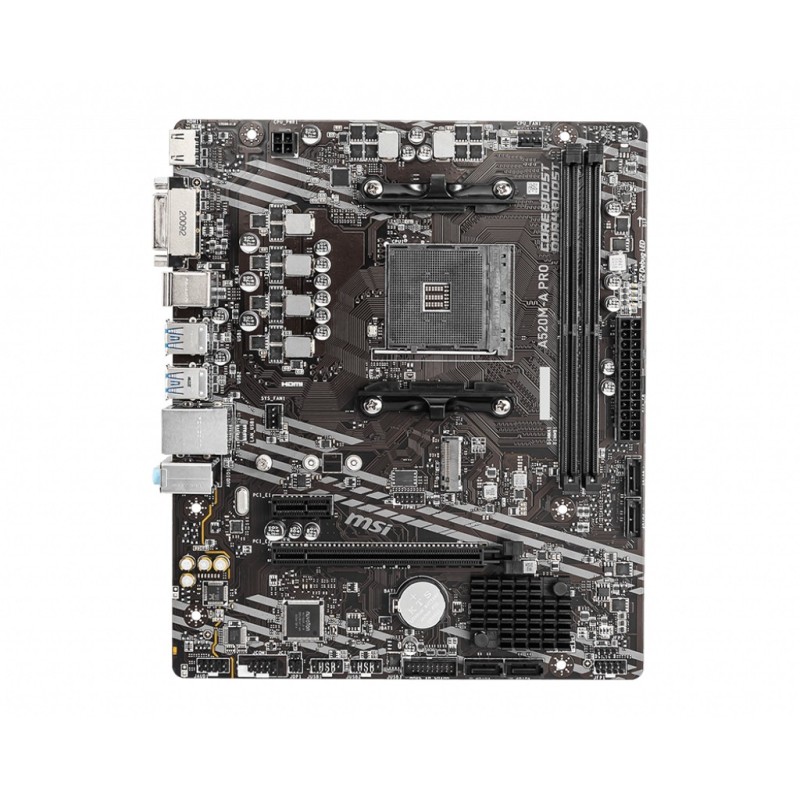

MSI A520M-A PRO motherboard AMD A520 Socket AM4 micro ATX

MSI A520M-A PRO. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Maximum number of SMP processors	1
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Maximum internal memory	64 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	PCI Express 3.0, SATA
Supported storage drive types	HDD & SSD
Number of HDDs supported	5
RAID levels	0, 1, 10
Maximum resolution	4096 x 2160 pixels
Number of displays supported	2
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI-D ports quantity	1
Headphone outputs	1
Microphone in	Yes
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Realtek RTL8111H
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Audio output channels	7.1 channels
Audio chip	Realtek ALC892
Number of mounting holes	8
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
Harmonized System (HS) code	84733020
Width	9.29" (236 mm)
Depth	7.87" (200 mm)
Height	2.36" (60 mm)
Weight	24.6 oz (698 g)
