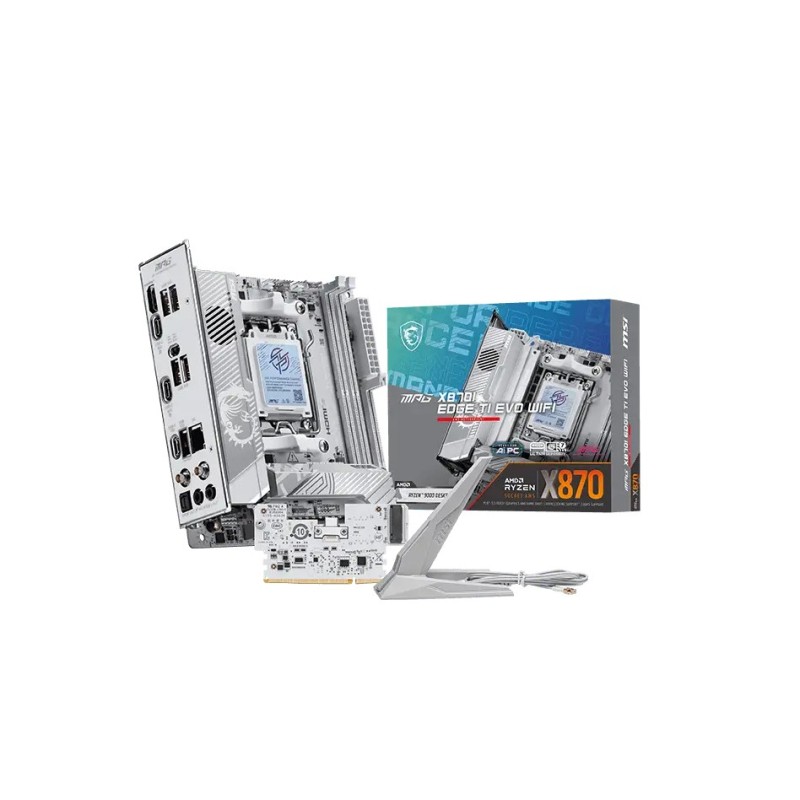

MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ITX

MSI MPG X870I EDGE TI EVO WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: AMD

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Maximum internal memory	256 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	9000,8000,7000 MHz
Supported memory clock speed (max)	9000 MHz
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	2
Number of storage drives supported	3
RAID support	Yes
RAID levels	0, 1, 5, 10
On-board graphics card	No
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	2
Number of SATA II connectors	0
Number of SATA connectors	0
Total number of SATA connectors	2
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
USB4 Gen 2×2 ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Microphone in	Yes
S/PDIF out port	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet
LAN controller	Realtek RTL8126
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Component for	PC
Motherboard form factor	mini ITX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Audio output channels	7.1 channels
Audio chip	Realtek ALC4080
Product color	White
PC health monitoring	CPU, Fan, Temperature, Voltage
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
ACPI version	6.5
System Management BIOS (SMBIOS) version	3.7
Width	6.69" (170 mm)
Depth	6.69" (170 mm)
mSATA ports quantity	0
