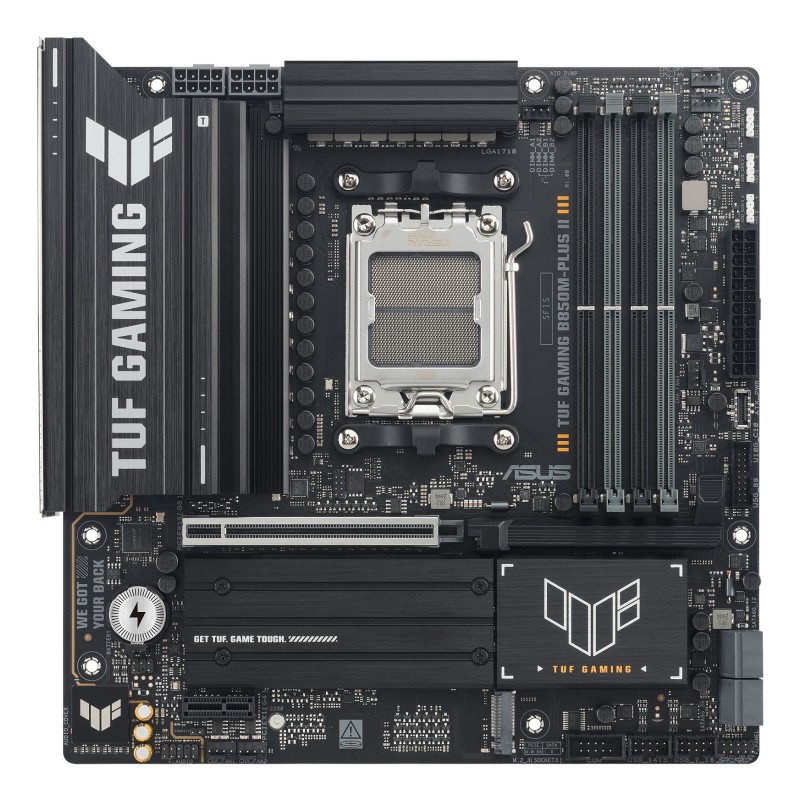

ASUS TUF GAMING B850M-PLUS II, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC1220P |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Package width | 10.8" (275 mm) |
| Package depth | 10.8" (275 mm) |
| Package height | 2.66" (67.5 mm) |
| Package weight | 3.64 lbs (1.65 kg) |
| Width | 9.61" (244 mm) |
| Depth | 9.61" (244 mm) |
| Cables included | SATA |
| Screws included | Yes |
