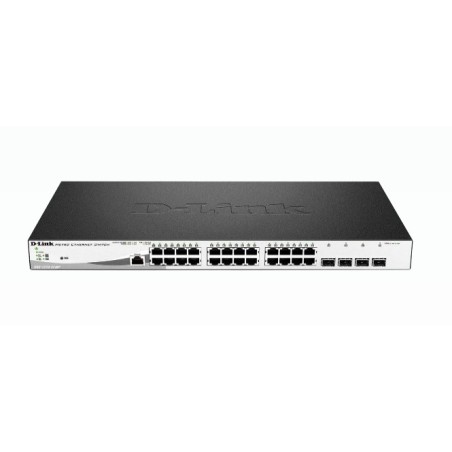

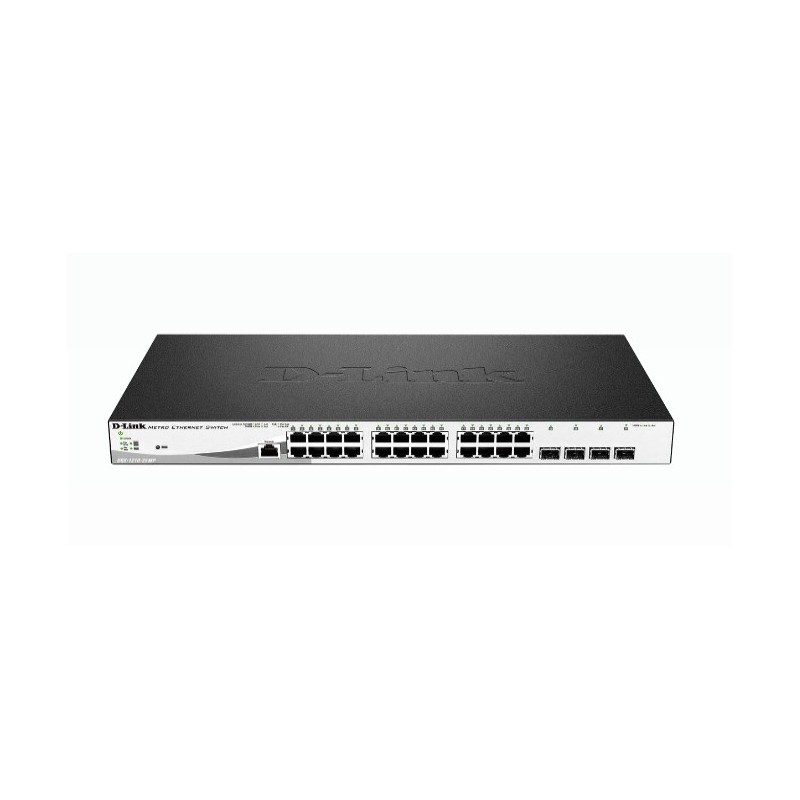

D-Link DGS-1210-28MP/E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Gray

D-Link DGS-1210-28MP/E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
MIB support	RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Fiber optic connector	SFP
Console port	RJ-45
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4094
Fiber ethernet cabling technology	1000BASE-X
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.7 Mpps
Store-and-forward	Yes
Number of queues	8
Number of static routes	32
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	1.5 MB
DHCP features	DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	256
IGMP snooping	Yes
Security algorithms	802.1x RADIUS, SNMP, SSH
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Rack mounting	Yes
Form factor	1U
Product color	Black, Gray
LED indicators	Activity, Fan fail, Link, Power, Speed
Number of fans	2 fan(s)
Electromagnetic compatibility	FCC A, CE A, VCCI, C-Tick, BSMI, CCC
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	32 MB
Noise level	52.4 dB
Power source	AC/DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	27.49 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	850.58 BTU/h
Width	17.3" (440 mm)
Depth	8.27" (210 mm)
Height	1.73" (44 mm)
Weight	8.51 lbs (3.86 kg)
Certification	IEC61000-4-5, RoHS
Harmonized System (HS) code	85176990
