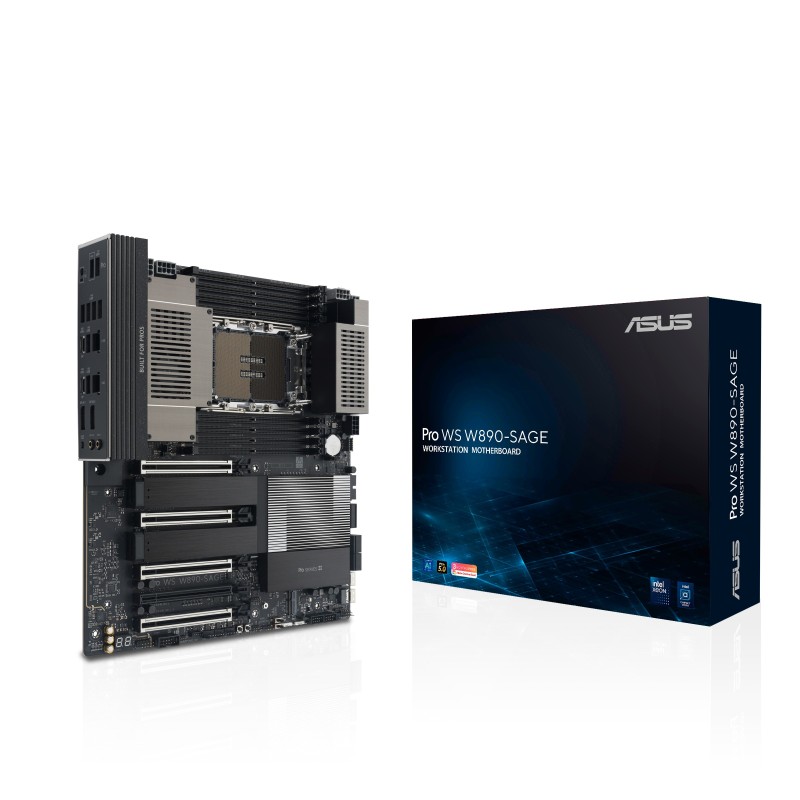

ASUS PRO WS W890-SAGE Intel W890 LGA 4710-2 CEB

ASUS PRO WS W890-SAGE. Processor manufacturer: Intel, Processor socket: LGA 4710-2, Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Quad-channel. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 1, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet

Processor manufacturer	Intel
Processor socket	LGA 4710-2
Compatible processor series	Intel® Xeon®
Supported processor sockets	LGA 4710-2
Supported memory types	DDR5-SDRAM
Number of memory slots	8
Memory slots type	DIMM
Memory channels	Quad-channel
ECC сompatibility	ECC
Supported storage drive interfaces	M.2, SATA III, SlimSAS
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	10
RAID support	Yes
RAID levels	0, 5, 1, 10
Parallel processing technology support	Not supported
Maximum resolution	7680 x 4320 pixels
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	5
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	5
Number of COM connectors	1
12V power connector	Yes
Integrated SAS ports	2
Number of water pump connectors	1
Number of temperature sensor headers	1
RGB LED pin header	Yes
Number of RGB LED pin headers	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
HDMI ports quantity	0
DVI-D ports quantity	0
USB4 Gen 3×2 ports quantity	2
DisplayPorts quantity	2
DisplayPort version	1.4
Headphone outputs	1
Line-in	Yes
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Component for	Workstation
Motherboard form factor	CEB
Motherboard chipset family	Intel
Motherboard chipset	Intel W890
Audio output channels	7.1 channels
Audio chip	Realtek ALC1220P
Product color	Black
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Windows 11
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	4
Number of M.2 (M) slots	4
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	5.0
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Yes
BIOS flashback button	Yes
Package width	14.8" (376 mm)
Package depth	12.6" (320 mm)
Package height	3.94" (100 mm)
Package weight	9.08 lbs (4.12 kg)
Width	12" (305 mm)
Depth	11" (280 mm)
Height	1.97" (50 mm)
Cables included	SATA, DisplayPort
Screws included	Yes
Weight	6.06 lbs (2.75 kg)
Number of M.2 (E) slots	1
