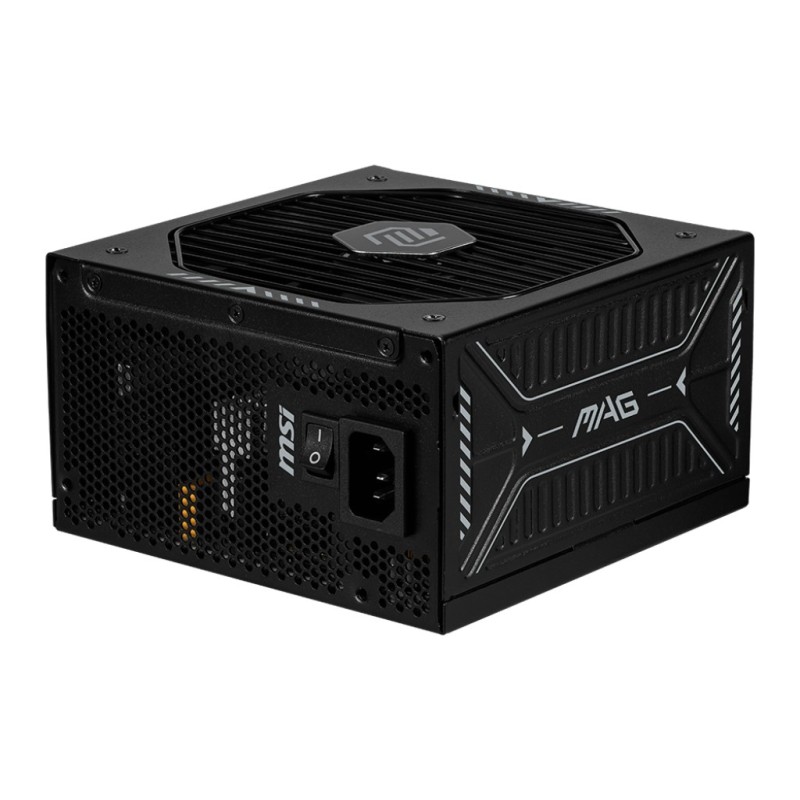

MSI MAG A1000GLS PCIE5 power supply unit 1000 W 24-pin ATX ATX Black

MSI MAG A1000GLS PCIE5. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 2200 W. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: Black, Cooling type: Active, Fan diameter: 5.31" (13.5 cm). Width: 5.91" (150 mm), Depth: 5.91" (150 mm), Height: 3.39" (86 mm)

Total power	1000 W
AC input voltage	100 - 240 V
Peak power	2200 W
AC input frequency	47 - 63 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	999.6 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Efficiency	90%
Power protection features	No load operation, Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Surge & inrush protection (SIP), Under voltage
Motherboard power connector	24-pin ATX
Peripheral (Molex) power connectors (4-pin)	4
Number of SATA power connectors	11
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (16-pin)	1
ATX Power connector (24-pin)	Yes
PCI Express connector	Yes
Number of EPS connectors	2
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Bearing technology	FDB
Product color	Black
Cooling type	Active
Fan diameter	5.31" (13.5 cm)
Number of fans	1 fan(s)
Illumination	No
Width	5.91" (150 mm)
Depth	5.91" (150 mm)
Height	3.39" (86 mm)
Package type	Box
