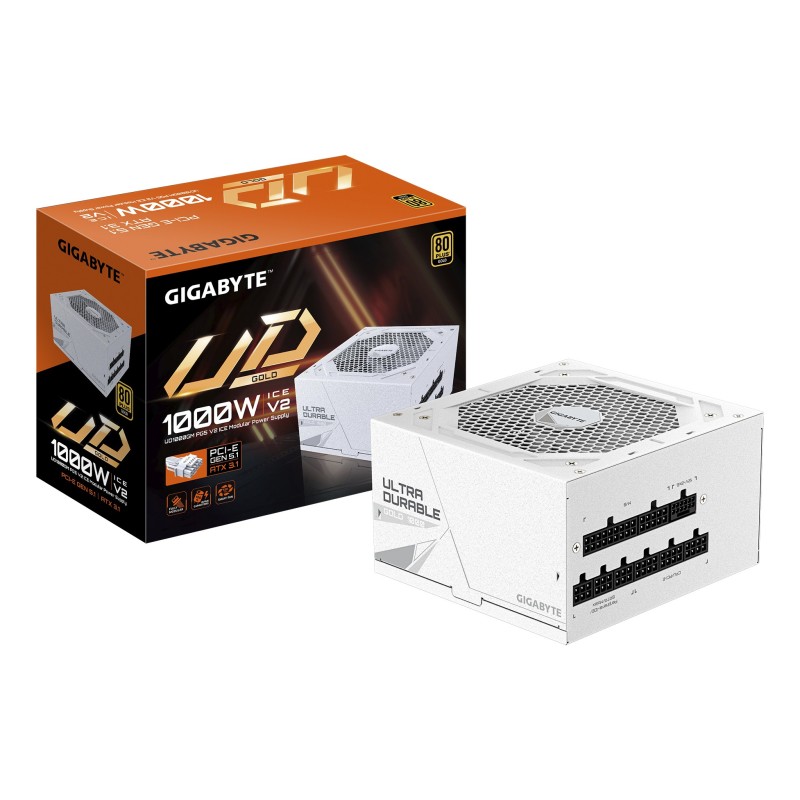

GIGABYTE UD1000GM PG5 V2 ICE power supply unit 1000 W 20+4 pin ATX ATX White

GIGABYTE UD1000GM PG5 V2 ICE. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 24" (61 cm), PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: White, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 5.91" (150 mm), Depth: 5.51" (140 mm), Height: 3.39" (86 mm)

Total power	1000 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	15 - 6.5 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1000 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83.3 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Hold time	16 ms
Efficiency	90%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	24" (61 cm)
Number of SATA power connectors	8
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (12+4 pin)	1
PCI Express power connectors (12+4 pin) cable length	700 mm
PCI Express power cable length	23.6" (60 cm)
CPU power connector (4+4 pin)	Yes
CPU power cable length	25.6" (65 cm)
Floppy drive power connector	1
PCI Express connector	Yes
Number of EPS connectors	2
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	HYB
Mean time between failures (MTBF)	100000 h
Product color	White
Cooling type	Active
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
On/off switch	Yes
Width	5.91" (150 mm)
Depth	5.51" (140 mm)
Height	3.39" (86 mm)
Weight	5.47 lbs (2.48 kg)
Package width	24.3" (618 mm)
Package depth	10.6" (269 mm)
Package height	8.31" (211 mm)
Package weight	5.82 lbs (2.64 kg)
Package type	Box
Warranty period	10 year(s)
