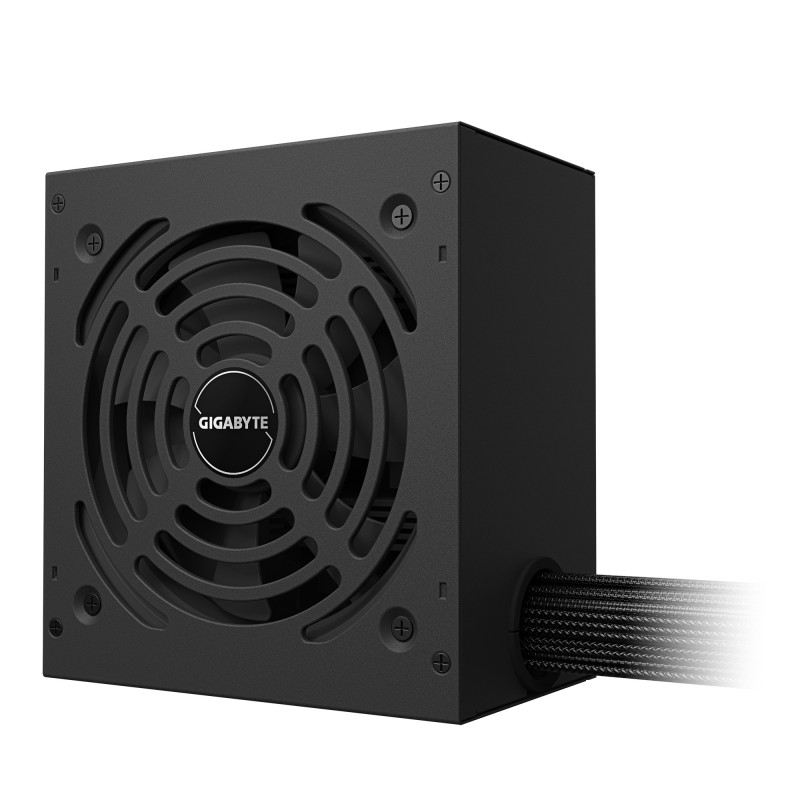

GIGABYTE P650G PCIE 5.1. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 23.6" (60 cm), SATA power cable length: 120,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 5.51" (140 mm), Depth: 5.91" (150 mm), Height: 3.39" (86 mm)
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 6 A |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 650 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 18 A |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over power, Overcharge, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power cable length | 23.6" (60 cm) |
| Number of SATA power connectors | 6 |
| SATA power cable length | 120,500 mm |
| Peripheral (Molex) power cable length | 150 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 19.7" (50 cm) |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 23.6" (60 cm) |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 h |
| Product color | Black |
| Cooling type | Active |
| Fan diameter | 4.72" (12 cm) |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Width | 5.51" (140 mm) |
| Depth | 5.91" (150 mm) |
| Height | 3.39" (86 mm) |
| Weight | 3.88 lbs (1.76 kg) |
| Package width | 10.2" (260 mm) |
| Package depth | 4.33" (110 mm) |
| Package height | 7.09" (180 mm) |
| Package weight | 4.23 lbs (1.92 kg) |
| Package type | Box |
| Warranty period | 5 year(s) |
