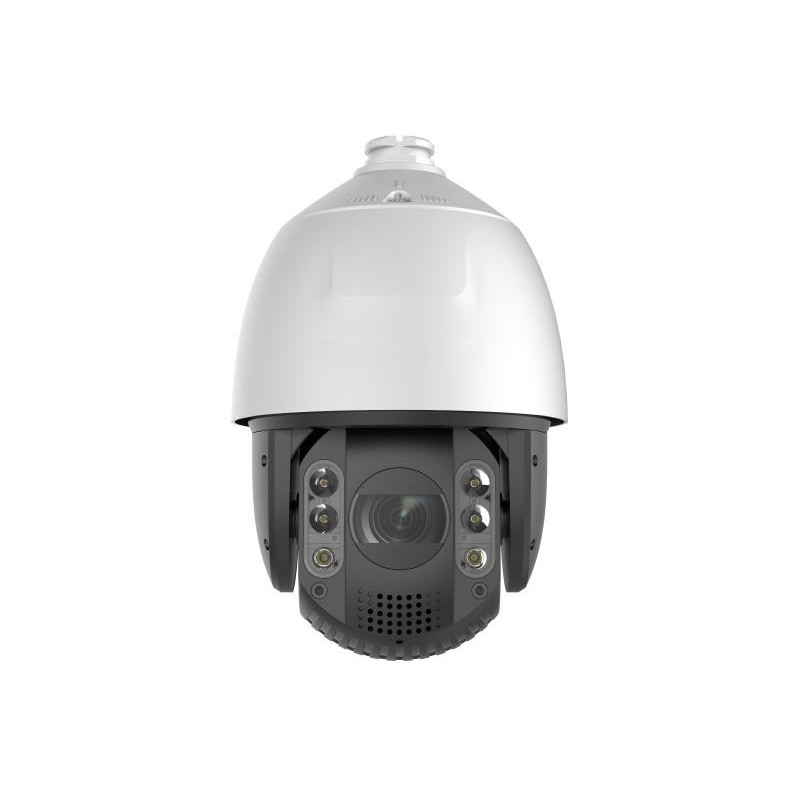

LevelOne FCS-4072 security camera Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Wall

LevelOne FCS-4072. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product color: White, Form factor: Dome. Field of view (FOV) angle: 360°, Tilt speed: 120 °/sec, Tilt preset speed: 200 °/sec. Sensor type: CMOS, Optical sensor size: 1/1.8". Optical zoom: 32x, Digital zoom: 16x, Focal length range: 5.9 - 188.8 mm

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Infrared (IR) cut-off filter	Yes
Mounting type	Wall
Product color	White
Form factor	Dome
LED indicators	Activity, Link
International Protection (IP) code	IP66
Weatherproof	Yes
Country of origin	China
Minimum illumination	0 lx
Field of view (FOV) angle	360°
Tilt speed	120 °/sec
Tilt preset speed	200 °/sec
Pan speed	160 °/sec
Pan preset speed	240 °/sec
Camera shutter speed	1/1 - 1/30000 s
Sensor type	CMOS
Optical sensor size	1/1.8"
Progressive scan	Yes
Number of lenses	1
Optical zoom	32x
Digital zoom	16x
Focal length range	5.9 - 188.8 mm
Night vision	Yes
Night vision distance	200 m
LED type	IR
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Frame rate	25 fps
Privacy masking	Yes
Audio system	2-way
Voice codecs	AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
Intelligent Video Surveillance (IVS) system features	Abandoned object, Abnormal sound detection, Face detection, Intrusion, Line crossing detection, Missing object, Region entrance detection, Region exiting detection
Power source type	AC, DC, PoE
Power consumption (max)	42 W
DC output voltage	24
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Width	8.66" (220 mm)
Depth	8.66" (220 mm)
Height	13.9" (353.4 mm)
Weight	11 lbs (5 kg)
Package width	10.6" (270 mm)
Package depth	10.6" (270 mm)
Package height	18.9" (480 mm)
Package weight	12.1 lbs (5.5 kg)
Package type	Box
Compliance certificates	BIS, CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS, UKCA, UL
Number of cameras	1
Mounting kit	Yes
Screws included	Yes
Manual	Yes
AC adapter included	Yes
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height	61.8" (156.9 cm)
Customs product code (TARIC)	8525890000
Harmonized System (HS) code	852589
Master (outer) case width	17.7" (450 mm)
Master (outer) case length	11" (280 mm)
Master (outer) case height	21.7" (550 mm)
Master (outer) case weight	26.5 lbs (12 kg)
Quantity per master (outer) case	2 pc(s)
