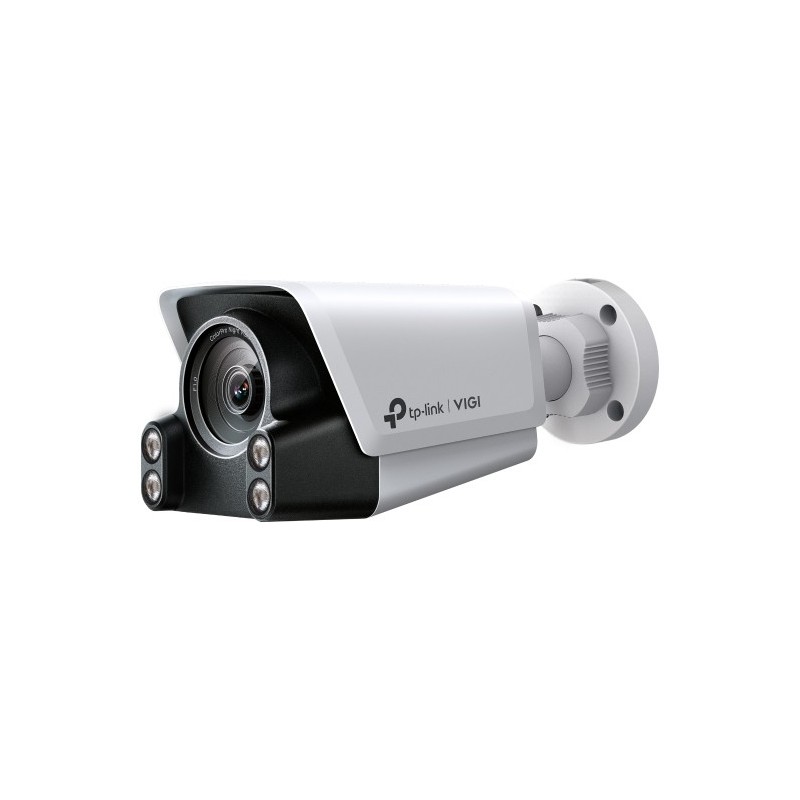

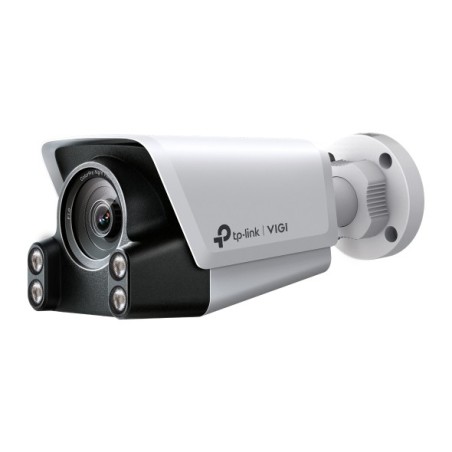

TP-Link VIGI C340S Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

TP-Link VIGI C340S. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product color: White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 95.2°, Lens viewing angle, vertical: 50.6°. Sensor type: CMOS, Optical sensor size: 1/1.8". Detect distance: 2755.9" (70 m), Observe distance: 1141.7" (29 m), Recognize distance: 551.2" (14 m)

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Luminous flux	0.0005 lm
Dynamic range	120 dB
Mounting type	Wall
Product color	White
Form factor	Bullet
Housing material	Metal, Plastic
International Protection (IP) code	IP67
Minimum illumination	0.0005 lx
Lens viewing angle, horizontal	95.2°
Lens viewing angle, vertical	50.6°
Lens viewing angle, diagonal	114.7°
Tilt angle range	-90 - 90°
Pan range	-90 - 90°
Camera shutter speed	1/10000 s
Number of Privacy masking areas	4
Sensor type	CMOS
Optical sensor size	1/1.8"
Progressive scan	Yes
Number of lenses	1
Detect distance	2755.9" (70 m)
Observe distance	1141.7" (29 m)
Recognize distance	551.2" (14 m)
Focal length range	4 mm
Maximum aperture number	1
Identify distance	275.6" (7 m)
Minimum aperture number	1
Fixed focal length	0.157" (4 mm)
Night vision	Yes
Night vision distance	30 m
LED type	White
Number of illumination LEDs	4
Maximum resolution	2688 x 1520 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2550 x 1440, 2688 x 1520
Frame rate	60 fps
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Privacy masking	Yes
Bit rate	4 Mbps
Region of Interest (ROI) encoding	Yes
Built-in speaker(s)	Yes
Sample rate	8 kHz
Signal-to-Noise Ratio (SNR)	52 dB
Built-in microphone	Yes
Bit rate range	64 - 64 Kbit/s
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Ethernet LAN (RJ-45) ports	1
Password protection	Yes
IP address filtering	Yes
Privacy protection	Yes
Digest authentication	Yes
Power source type	DC
Power consumption (max)	10.1 W
DC output voltage	12
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	4.02" (102 mm)
Depth	9.29" (236 mm)
Height	3.9" (99 mm)
Number of cameras	1
