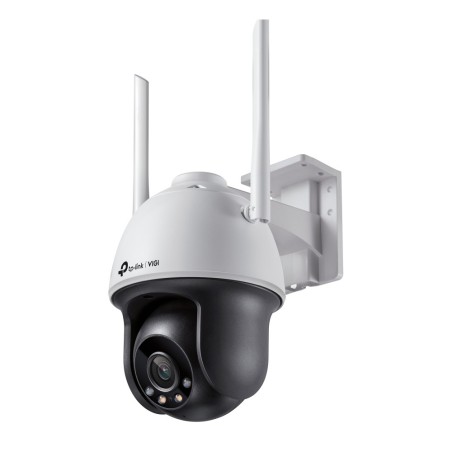

TP-Link VIGI C540-W V1 Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

TP-Link VIGI C540-W V1. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product color: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 93°. Sensor type: CMOS, Optical sensor size: 1/3". Detect distance: 3149.6" (80 m), Observe distance: 1299.2" (33 m), Recognize distance: 629.9" (16 m)

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Certification	RCM, BSMI, VCCI, NCC, JRF, KC
Mounting type	Ceiling/wall
Product color	Black, White
Form factor	Turret
Housing material	Plastic
International Protection (IP) code	IP66
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	79°
Lens viewing angle, vertical	43°
Lens viewing angle, diagonal	93°
Tilt angle range	0 - 120°
Tilt speed	44 °/sec
Pan range	0 - 350°
Pan speed	44 °/sec
Sensor type	CMOS
Optical sensor size	1/3"
Progressive scan	Yes
Number of lenses	1
Zoom capability	Yes
Detect distance	3149.6" (80 m)
Observe distance	1299.2" (33 m)
Recognize distance	629.9" (16 m)
Lens diameter	0.157" (4 mm)
Identify distance	315" (8 m)
Night vision	Yes
Night vision distance	30 m
LED type	IR
Infra-red wavelength	850 nm
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking	Yes
Bit rate	256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)	Yes
Built-in speaker(s)	Yes
Built-in microphone	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	No
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Live view	Yes
Number of simultaneous live view channels	3 channels
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
Password protection	Yes
IP address filtering	Yes
Security algorithms	WPA, WPA2-PSK
HTTPS encryption	Yes
Intelligent Video Surveillance (IVS) system features	Human detection
Mirror	Yes
Digest authentication	Yes
Reset button	Yes
Behavior analysis	Intrusion detection, Line crossing detection
Power source type	DC
DC output voltage	12
Operating temperature (T-T)	-30 - 60 °C
Width	4.72" (120 mm)
Depth	6.77" (172 mm)
Height	7.8" (198 mm)
Basic event	Motion Detection, Camera Tampering Detection, Exception
Package width	6.42" (163 mm)
Package depth	9.57" (243 mm)
Package height	9.57" (243 mm)
Package weight	2.67 lbs (1.21 kg)
Compliance certificates	CE, RoHS
Number of cameras	1
Mounting kit	Yes
