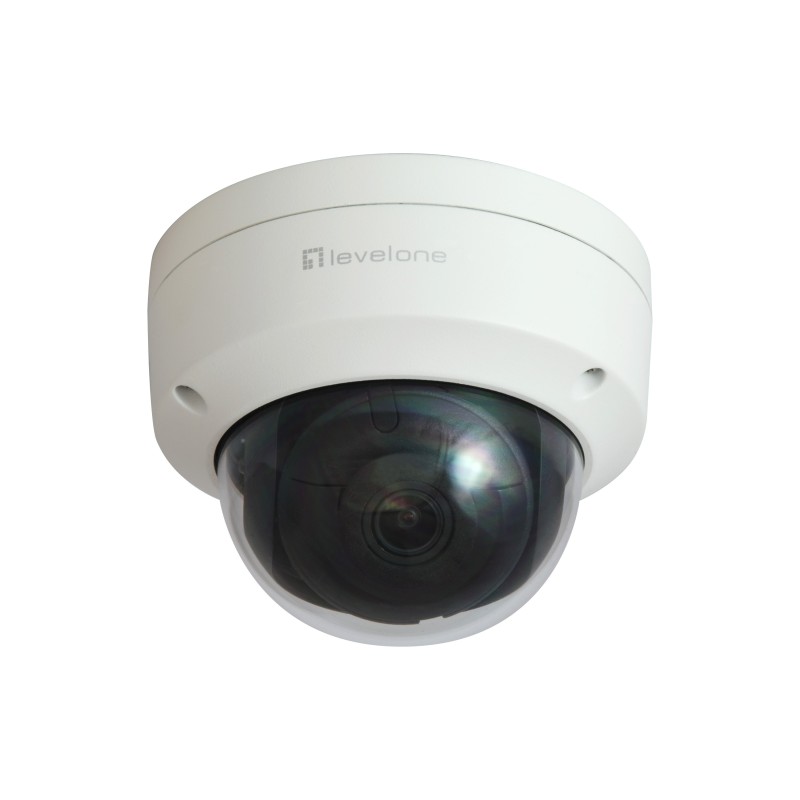

LevelOne FCS-3404 security camera Dome IP security camera Indoor & outdoor 3200 x 1800 pixels Ceiling

LevelOne FCS-3404. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product color: White, Form factor: Dome. Lens viewing angle, horizontal: 107°, Lens viewing angle, vertical: 57°, Lens viewing angle, diagonal: 128°. Sensor type: CMOS, Optical sensor size: 1/2.4". Digital zoom: 8x, Fixed focal length: 0.11" (2.8 mm)

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Infrared (IR) cut-off filter	Yes
Mounting type	Ceiling
Product color	White
Form factor	Dome
LED indicators	Power
International Protection (IP) code	IP67
Weatherproof	Yes
Country of origin	China
Minimum illumination	0 lx
Lens viewing angle, horizontal	107°
Lens viewing angle, vertical	57°
Lens viewing angle, diagonal	128°
Camera shutter speed	1/3 - 1/100000 s
Sensor type	CMOS
Optical sensor size	1/2.4"
Progressive scan	Yes
Number of lenses	1
Zoom capability	Yes
Digital zoom	8x
Maximum aperture number	1.6
Fixed focal length	0.11" (2.8 mm)
Night vision	Yes
Night vision distance	30 m
LED type	IR
Maximum resolution	3200 x 1800 pixels
Total megapixels	6 MP
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1512, 2688 x 1520, 3200 x 1800
Privacy masking	Yes
Audio system	2-way
Signal-to-Noise Ratio (SNR)	52 dB
Voice codecs	G.711, G.722.1, G.726, MP2L2, PCM
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Supported network protocols	TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes
Password protection	Yes
Video motion detection	Yes
Active tampering alarm	Yes
Intelligent Video Surveillance (IVS) system features	Face detection, Human detection, Intrusion, Line crossing detection, Missing object, Vehicle detection
Anti-flicker	Yes
Heartbeat	Yes
Mirror	Yes
Digital watermark	Yes
Power source type	DC, PoE
Power consumption (max)	7.5 W
Power consumption (Power over Ethernet (PoE))	9 W
DC output voltage	12
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Width	3.23" (82 mm)
Depth	4.33" (110 mm)
Height	4.33" (110 mm)
Weight	17.6 oz (500 g)
Package width	4.25" (108 mm)
Package depth	5.28" (134 mm)
Package height	5.28" (134 mm)
Package weight	28.2 oz (800 g)
Package type	Box
Compliance certificates	CE, Federal Communications Commission (FCC), UKCA
Number of cameras	1
Screws included	Yes
Manual	Yes
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height	56.3" (143 cm)
Customs product code (TARIC)	8525890000
Harmonized System (HS) code	852589
Master (outer) case width	22.4" (568 mm)
Master (outer) case length	13.6" (345 mm)
Master (outer) case height	23.2" (590 mm)
Master (outer) case weight	46.3 lbs (21 kg)
Quantity per master (outer) case	24 pc(s)
