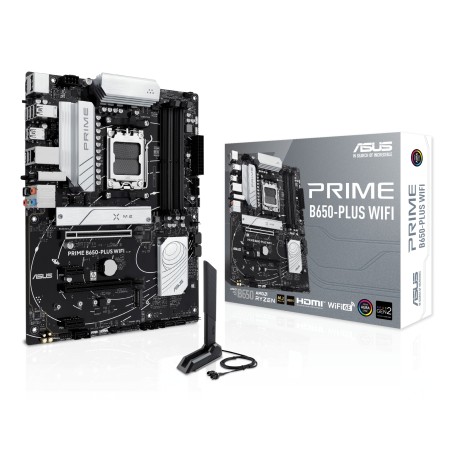

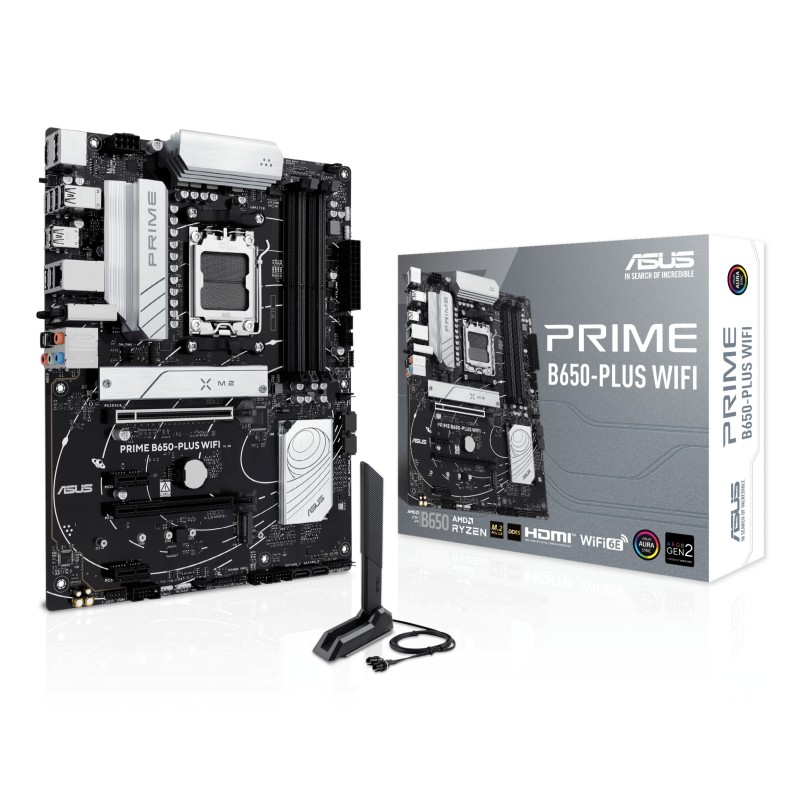

ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX
  • ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX
  • ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX
  • ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX

ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX

64DE2059F4

ASUS PRIME B650-PLUS WIFI Mainboard ATX Sockel AM5

€196.99
Tax included
Quantity
Out-of-Stock

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Notify me when available
Description
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Supported memory typesDDR5-SDRAM
Number of memory slots4
Maximum internal memory192 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds7400,4800,7600,7800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory clock speed (max)7600 MHz
Unbuffered memoryYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 10
Parallel processing technology supportNot supported
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
Number of COM connectors1
TPM connectorYes
Thunderbolt headers1
12V power connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
S/PDIF out portYes
WiFi-AP antenna jack1
Wi-FiYes
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.3
Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B650
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64, Windows 11
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots2
Number of M.2 (M) slots2
1st M.2 largest key size22110
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
BIOS typeUEFI AMI
BIOS memory size256 Mbit
Package width13.3" (338 mm)
Package depth14.7" (373 mm)
Package height2.68" (68 mm)
Package weight2.98 lbs (1.35 kg)
Width12" (305 mm)
Depth9.61" (244 mm)
Cables includedSATA
Antenna includedYes
Screws includedYes
Product Details
64DE2059F4
Notify me when available

Specific References

EAN13
4711387760895
