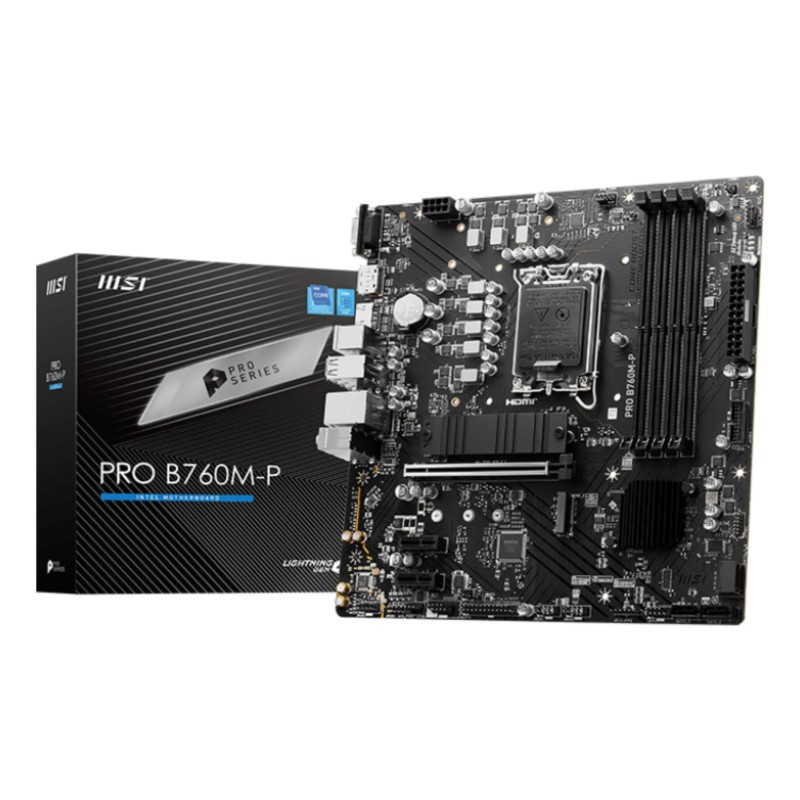

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX
  • MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX
  • MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX
  • MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX

3B5240720D

MSI B760M-P mATX Mainboard Sockel 1700, HDMI/DP/VGA

€118.60
Tax included
Quantity
Out-of-Stock

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Notify me when available
Description
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Pentium® Gold
Supported processor socketsLGA 1700
Supported memory typesDDR5-SDRAM
Number of memory slots4
Maximum internal memory192 GB
ECC сompatibilityNon-ECC
Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Unbuffered memoryYes
Supported storage drive interfacesSATA III
Supported storage drive typesHDD & SSD
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 5, 10
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Number of COM connectors1
TPM connectorYes
Parallel connectorYes
RGB LED pin headerYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
PS/2 ports quantity2
HDMI version1.4
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Line-inYes
Microphone inYes
Wi-FiNo
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Top Wi-Fi standardNot available
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B760
Audio output channels7.1 channels
Audio chipRealtek ALC897
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version6.4
Clear CMOS jumperYes
System Management BIOS (SMBIOS) version3.5
Width9.6" (243.8 mm)
Depth9.6" (243.8 mm)
Cables includedSATA
Product Details
MSI
3B5240720D
Notify me when available

Specific References

EAN13
4711377086578
