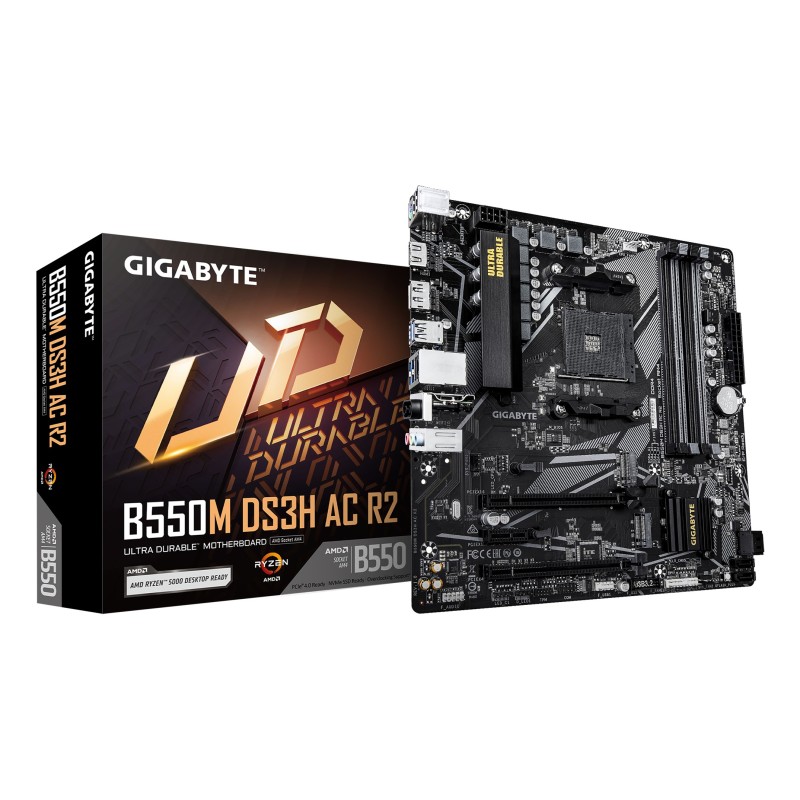

GIGABYTE B550M DS3H AC R2 motherboard AMD B550 Socket AM4 micro ATX

C55E384700

GIGABYTE B550M DS3H AC R2, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, Socket AM4, DDR4-SDRAM, 128 GB

€117.43
Tax included
Quantity
Out-of-Stock

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Notify me when available
Description
GIGABYTE B550M DS3H AC R2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor socketsSocket AM4
Supported memory typesDDR4-SDRAM
Number of memory slots4
Maximum internal memory128 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max)4733 MHz
Unbuffered memoryYes
Maximum internal memory per slot32 GB
Supported storage drive interfacesM.2, PCI Express 3.0, PCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 10
Parallel processing technology supportNot supported
On-board graphics cardNo
Maximum resolution5120 x 2880 pixels
HDCPYes
DirectX version12.0
USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of SATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
TPM connectorYes
Serial port headers1
RGB LED pin headerYes
Number of RGB LED pin headers5
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
PS/2 ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack2
Wi-FiYes
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller modelRealtek RTL8821CE
BluetoothYes
Bluetooth version5.0
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B550
Audio output channels7.1 channels
Audio chipRealtek ALC1220-VB
Product colorDark brown
PC health monitoringFan, Temperature, Voltage
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation3.0
BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Quantity per shipping (inner) case1 pc(s)
Battery weight0.106 oz (3 g)
Lithium weight per battery0.00247 oz (0.0700 g)
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Package width10.6" (270 mm)
Package depth10.6" (268 mm)
Package height2.68" (68 mm)
Package weight2.36 lbs (1.07 kg)
Width9.61" (244 mm)
Depth9.61" (244 mm)
Height1.38" (35 mm)
Batteries includedYes
Antenna includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
mSATA ports quantity0
Weight34.6 oz (980 g)
Warranty period3 year(s)
