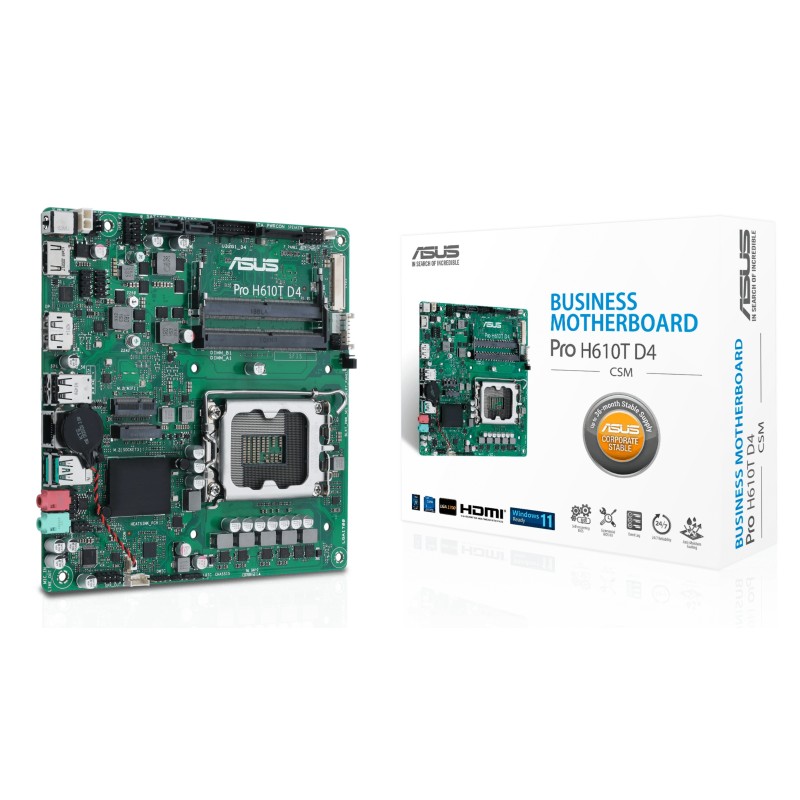

ASUS Pro H610T D4-CSM Intel H610 LGA 1700 Thin Mini ITX

ASUS Pro H610T D4-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: SO-DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: Thin Mini ITX, Motherboard chipset family: Intel

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximum number of SMP processors	1
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Maximum internal memory	64 GB
Memory slots type	SO-DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133,2400,2666,2800,2933,3200 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of storage drives supported	3
Parallel processing technology support	Not supported
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	2
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
Number of COM connectors	1
TPM connector	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wake-on-LAN ready	Yes
Top Wi-Fi standard	Not available
Component for	PC
Motherboard form factor	Thin Mini ITX
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Number of M.2 (M) slots	1
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Harmonized System (HS) code	84733020
Width	6.69" (170 mm)
Depth	6.69" (170 mm)
Height	8.7" (221 mm)
Cables included	SATA
Drivers included	Yes
Weight	13.5 oz (382 g)
