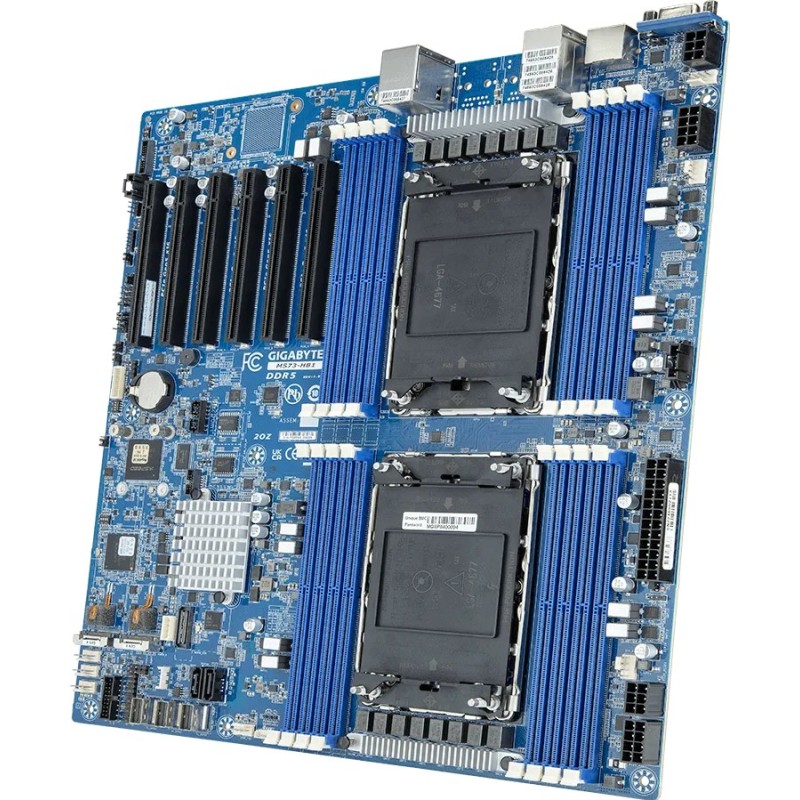

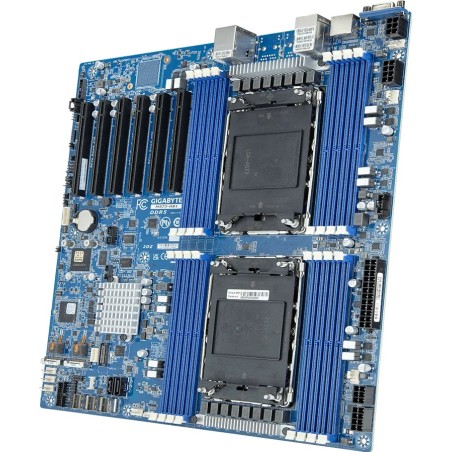

GIGABYTE MS73-HB1 Intel C741 LGA 4677 (Socket E) Extended ATX

GIGABYTE MS73-HB1. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Octa-channel. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I210-AT

Processor manufacturer	Intel
Processor socket	LGA 4677 (Socket E)
Compatible processor series	Intel® Xeon®
Supported memory types	DDR5-SDRAM
Number of memory slots	16
Memory slots type	DIMM
Memory channels	Octa-channel
Supported memory clock speeds	4800,5600 MHz
Supported storage drive interfaces	SATA III
Number of storage drives supported	12
RAID support	Yes
RAID levels	0, 1, 5, 10
On-board graphics card model	Aspeed AST2600
USB 2.0 connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	2
TPM connector	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
DVI-D ports quantity	0
COM ports quantity	1
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Intel® I210-AT
Component for	Server
Motherboard form factor	Extended ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel C741
Compatible operating systems	Windows Server 2022
PCI Express x8 (Gen 5.x) slots	2
PCI Express x16 (Gen 5.x) slots	5
Number of M.2 (M) slots	2
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
Storage temperature (T-T)	10 - 40 °C
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	20 - 95%
Package width	19.3" (490 mm)
Package depth	14" (355 mm)
Package height	3.07" (78 mm)
Width	12" (304.8 mm)
Depth	13" (330.2 mm)
Cables included	SATA
