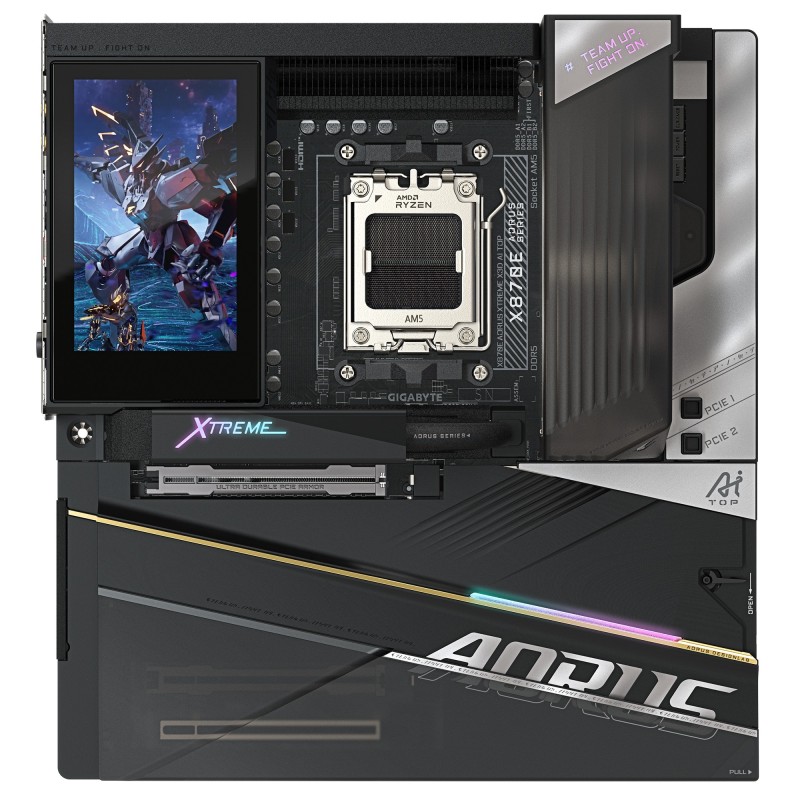

GIGABYTE X870E AORUS XTREME X3D AI TOP AMD X870E Socket AM5 Extended ATX

GIGABYTE X870E AORUS XTREME X3D AI TOP. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	256 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory clock speed (max)	9000 MHz
Unbuffered memory	Yes
Maximum internal memory per slot	64 GB
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	2
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
HDCP version	2.3
DirectX version	12.0
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	2
USB 3.2 Gen 2x2 connectors	1
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	3
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	2
Number of water pump connectors	3
Number of temperature sensor headers	2
RGB LED pin header	Yes
Number of RGB LED pin headers	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB4 Gen 2×2 ports quantity	2
HDMI version	2.1
DisplayPort version	1.4
Line-in	Yes
Microphone in	Yes
S/PDIF out port	Yes
Digital audio optical out	1
WiFi-AP antenna jack	2
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet
LAN controller	Realtek RTL8127
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7927
Bluetooth	Yes
Bluetooth version	5.4
Component for	PC
Motherboard form factor	Extended ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Audio output channels	7.1 channels
Audio chip	1 ESS ES9280AC + 2 ESS ES9080
Product color	Black
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Windows 11 x64
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
Number of M.2 (M) slots	5
1st M.2 largest key size	2580
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	22110
4th M.2 highest PCI Express generation	4.0
5th M.2 largest key size	2280
5th M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
ACPI version	5.0
Clear CMOS button	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	Taiwan
Quantity per shipping (inner) case	1 pc(s)
Battery weight	0.106 oz (3 g)
Lithium weight per battery	0.00247 oz (0.0700 g)
Number of battery cells	1
Battery capacity	220 mAh
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	15.2" (387 mm)
Package depth	15.2" (387 mm)
Package height	6.57" (167 mm)
Package weight	24.7 lbs (11.2 kg)
Width	12" (305 mm)
Depth	11.2" (285 mm)
Height	1.38" (35 mm)
Batteries included	Yes
Antenna included	Yes
Screws included	Yes
Bundled software	Norton® Internet Security (OEM version)
Weight	17.7 lbs (8.02 kg)
Warranty period	3 year(s)
