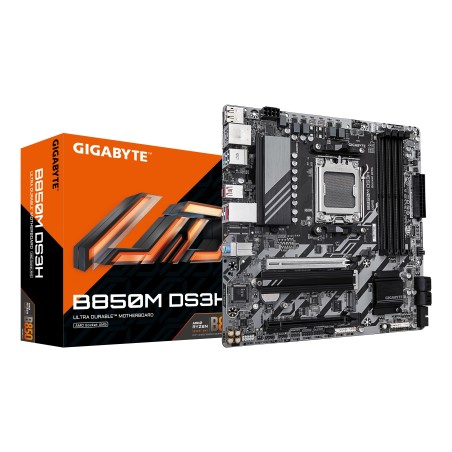

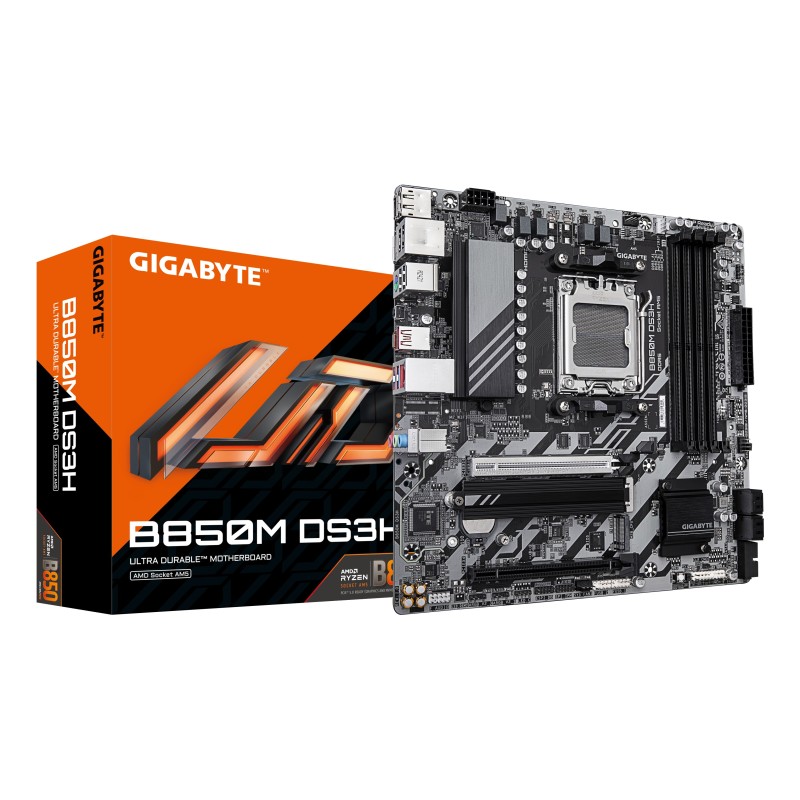

GIGABYTE B850M DS3H motherboard AMD B850 Socket AM5 micro ATX

GIGABYTE B850M DS3H. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	256 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory clock speed (max)	8200 MHz
Unbuffered memory	Yes
Maximum internal memory per slot	64 GB
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	6
RAID support	Yes
RAID levels	0, 1, 10
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	1
TPM connector	Yes
Serial port headers	1
12V power connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	4
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	2.1
Headphone outputs	1
Microphone in	Yes
WiFi-AP antenna jack	2
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Product color	Brown
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	2
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	25110
2nd M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Clear CMOS button	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Battery weight	0.106 oz (3 g)
Lithium weight per battery	0.00247 oz (0.0700 g)
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	10.6" (270 mm)
Package depth	10.6" (268 mm)
Package height	2.68" (68 mm)
Package weight	2.95 lbs (1.34 kg)
Width	9.61" (244 mm)
Depth	9.61" (244 mm)
Height	1.38" (35 mm)
Batteries included	Yes
Antenna included	Yes
Screws included	Yes
Bundled software	Norton Internet Security (OEM version) LAN bandwidth management software
Weight	2.51 lbs (1.14 kg)
Warranty period	3 year(s)
