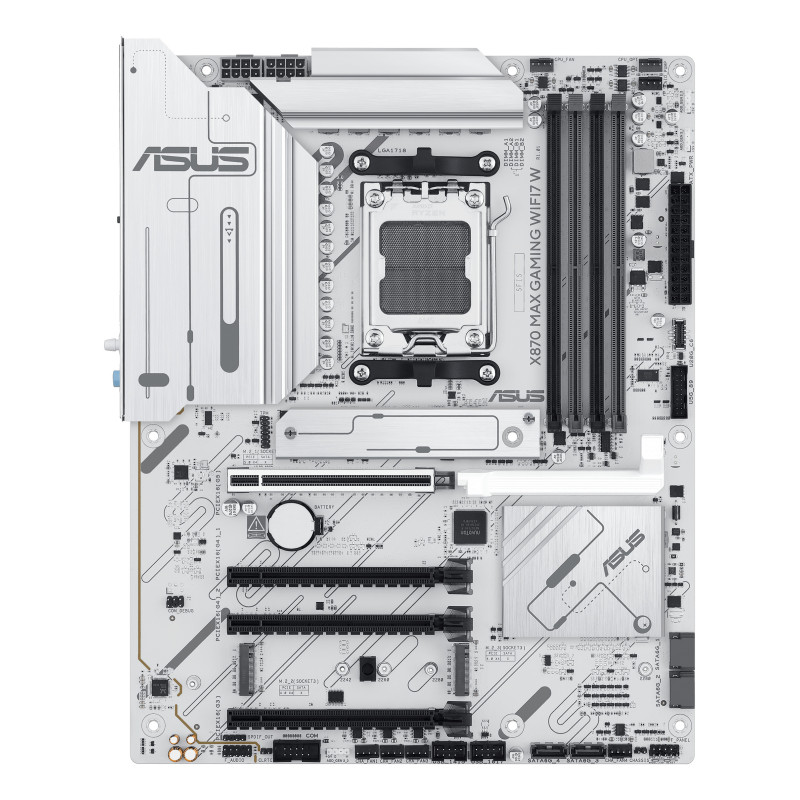

ASUS X870 MAX GAMING WIFI7 W AMD X870 Socket AM5 ATX

ASUS X870 MAX GAMING WIFI7 W. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A, USB Type-C

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	256 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speed (max)	8000 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types	HDD & SSD
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10
Parallel processing technology support	Not supported
Maximum resolution	3840 x 2160 pixels
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
USB 3.2 Gen 2x2 connectors	1
S/PDIF out connector	Yes
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	4
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	2
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes
Number of water pump connectors	1
RGB LED pin header	Yes
Number of RGB LED pin headers	3
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
USB4 Gen 3×2 ports quantity	2
HDMI version	2.1
Headphone outputs	3
Microphone in	Yes
WiFi-AP antenna jack	2
USB connector type	USB Type-A, USB Type-C
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wake-on-LAN ready	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Audio output channels	7.1 channels
Product color	White
Windows operating systems supported	Windows 11
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Width	12" (305 mm)
Depth	9.61" (244 mm)
Cables included	SATA
Antenna included	Yes
Screws included	Yes
