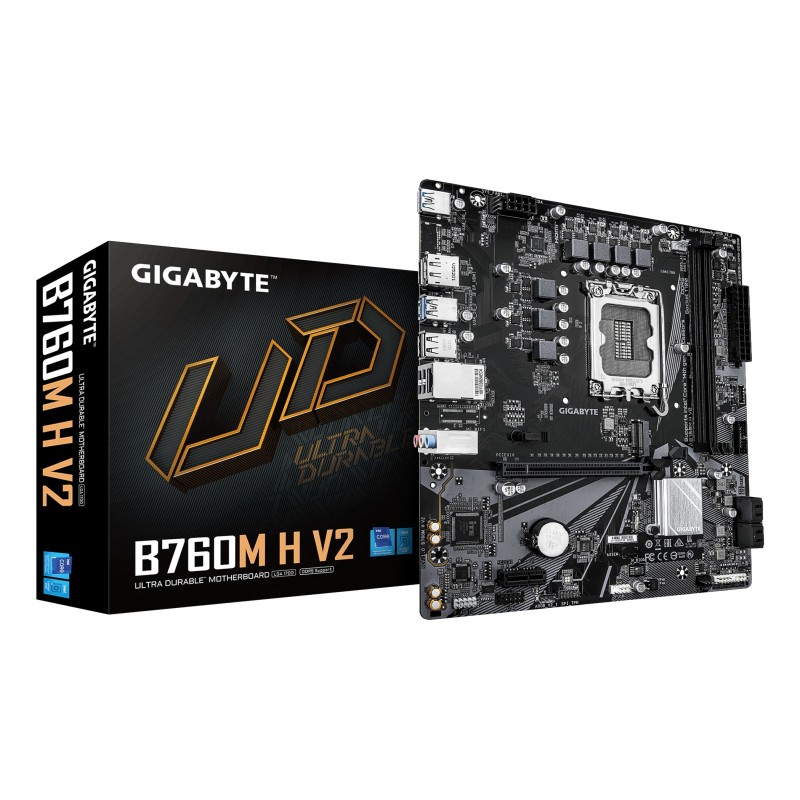

GIGABYTE B760M H V2 motherboard Intel B760 Express LGA 1700 micro ATX

GIGABYTE B760M H V2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
Supported processor sockets	LGA 1700
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4000 MHz
Supported memory clock speed (max)	8000 MHz
Unbuffered memory	Yes
Maximum internal memory per slot	64 GB
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	5
RAID support	Yes
RAID levels	0, 1, 5, 10
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
HDCP version	2.3
DirectX version	12.0
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	1
TPM connector	Yes
Serial port headers	1
12V power connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Realtek RTL8111H
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B760 Express
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Product color	Dark brown
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Battery weight	0.106 oz (3 g)
Lithium weight per battery	0.00247 oz (0.0700 g)
Number of battery cells	1
Battery capacity	220 mAh
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	10.4" (265 mm)
Package depth	10.4" (265 mm)
Package height	2.13" (54 mm)
Package weight	30 oz (850 g)
Width	9.61" (244 mm)
Depth	8.66" (220 mm)
Height	1.38" (35 mm)
Batteries included	Yes
Screws included	Yes
Bundled software	Norton® Internet Security (OEM version)
Weight	27.2 oz (770 g)
Warranty period	3 year(s)
