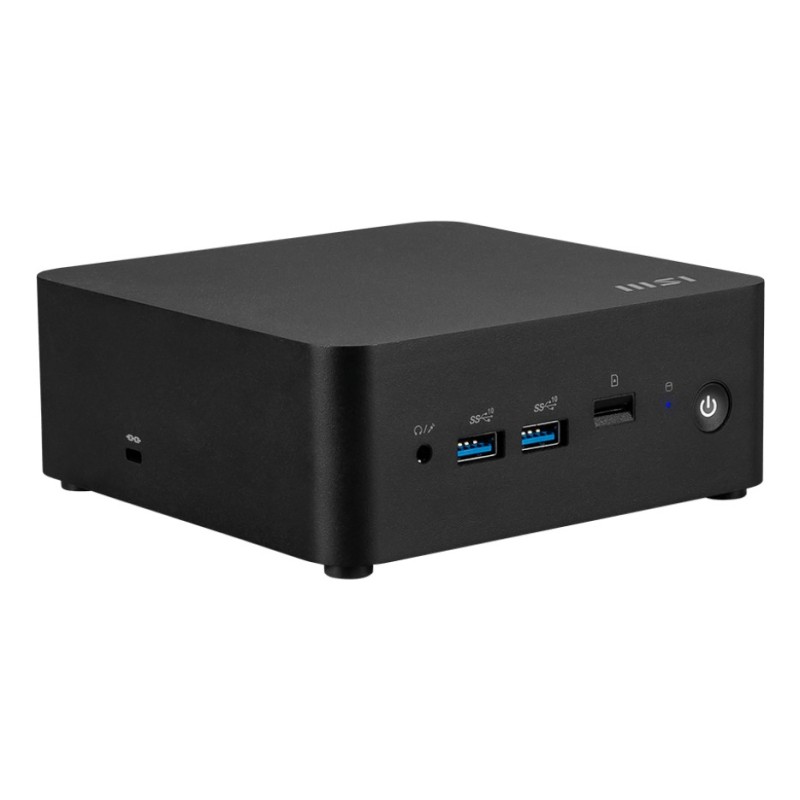

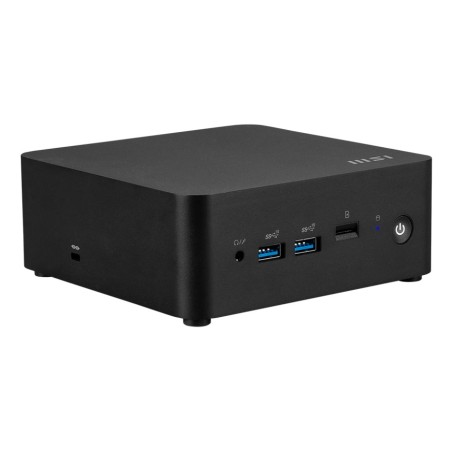

MSI Cubi NUC AI 1UMG-022AT Intel Core Ultra 7 155H 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black

MSI Cubi NUC AI 1UMG-022AT. Processor family: Intel Core Ultra 7, Processor model: 155H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Wi-Fi. Operating system installed: Windows 11 Pro. Product type: Mini PC. Weight: 22.2 oz (630 g). Product color: Black

Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	155H
Processor generation	Intel® Core™ Ultra (Series 1)
Processor cores	16
Processor threads	22
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Processor cache type	Smart Cache
Processor base power	28 W
Maximum turbo power	115 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	No
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I226-V
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Bluetooth version	5.3
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	2
Thunderbolt 4 ports quantity	2
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI version	2.1
DisplayPorts quantity	0
Ethernet LAN (RJ-45) ports	2
Microphone in	No
Combo headphone/mic port	Yes
DC-in jack	Yes
Product color	Black
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Housing material	Plastic
Product type	Mini PC
Motherboard chipset	Intel SoC
Motherboard form factor	NUC
Built-in speaker(s)	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating system installed	Windows 11 Pro
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%
Certification	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Width	4.71" (119.6 mm)
Depth	4.54" (115.2 mm)
Height	1.48" (37.5 mm)
Weight	22.2 oz (630 g)
Package width	8.07" (205 mm)
Package depth	8.66" (220 mm)
Package height	3.7" (94 mm)
Package weight	3.2 lbs (1.45 kg)
Mouse included	No
Keyboard included	No
AC adapter included	Yes
Power cord included	Yes
Display included	No
Power supply type	External AC adapter
Panel mounting interface	100 x 100 mm
Graphics card family	Intel
Cooling type	Active
Number of displays supported	4
Number of M.2 (M) slots	2
Warranty period	3 year(s)
