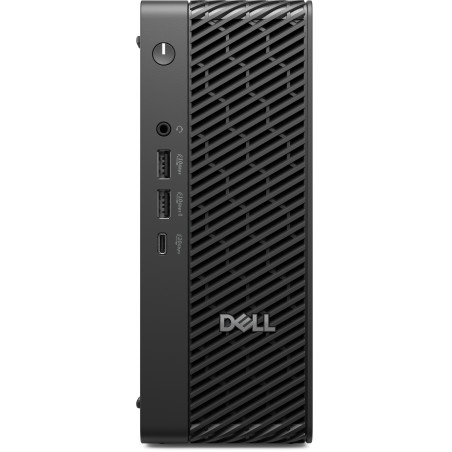

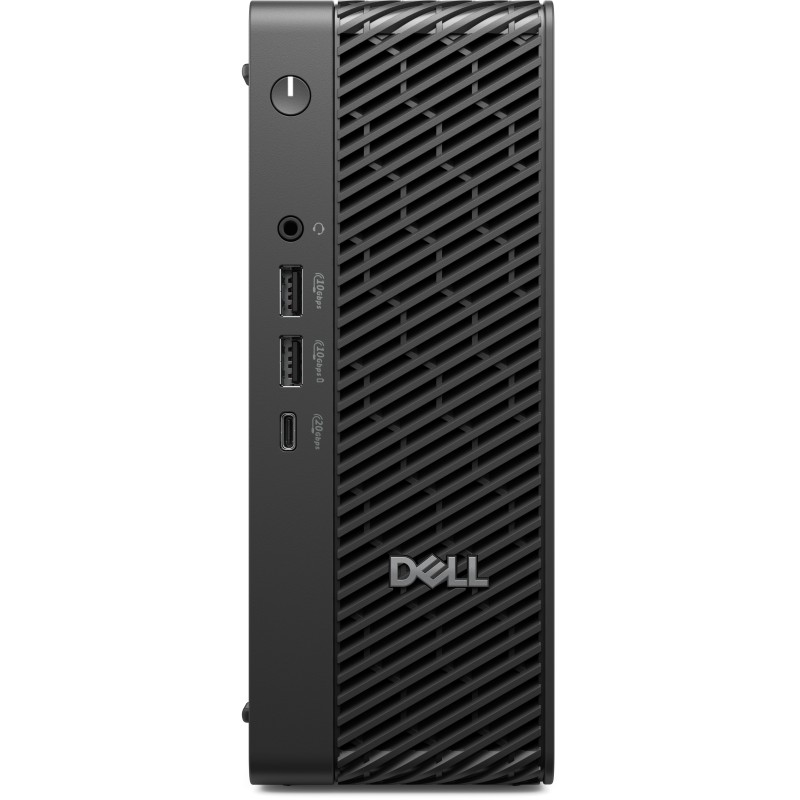

DELL Pro Max FCM2250 Intel Core Ultra 7 265 16 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A1000 Windows 11 Pro Micro PC Mini PC Black

DELL Pro Max FCM2250. Processor family: Intel Core Ultra 7, Processor model: 265. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA RTX A1000. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 280 W. Chassis type: Micro PC. Product type: Mini PC. Weight: 5.6 lbs (2.54 kg). Product color: Black

Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	265
Processor generation	Intel Core Ultra (Series 2)
Processor cores	20
Processor threads	20
Processor boost frequency	5.3 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	30 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	65 W
Maximum turbo power	182 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Non-ECC	Yes
Memory data transfer rate	5600 MT/s
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD memory type	TLC
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Discrete graphics card	Yes
On-board graphics card	Yes
Discrete graphics card model	NVIDIA RTX A1000
On-board graphics card model	Intel Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
Number of discrete graphics cards	1
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Graphics
Graphics card Mini DisplayPort ports quantity	4
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel® I219-LM
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE200
Antenna type	2x2
Antenna design	Internal
Bluetooth	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
DisplayPorts quantity	3
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
DC-in jack	Yes
PCI Express x8 (Gen 4.x) slots	2
Chassis type	Micro PC
Product color	Black
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Intel® vPro™ Platform Eligibility	Yes
Product type	Mini PC
Audio chip	Realtek ALC3204
Audio system	High Definition Audio
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Intel® Active Management Technology (Intel® AMT)	Yes
Power supply	280 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating vibration	0.66 G
Non-operating vibration	1.3 G
Operating shock	110 G
Non-operating shock	160 G
Sustainability certificates	ENERGY STAR, TCO10
Width	3.12" (79.3 mm)
Depth	7.01" (178 mm)
Height	8.11" (206 mm)
Weight	5.6 lbs (2.54 kg)
Cables included	AC
Total carbon footprint (kg of CO2e)	183
Total carbon emissions, standard deviation (kg of CO2e)
Carbon emissions, manufacturing (kg of CO2e)	63.318
Carbon emissions, logistics (kg of CO2e)	3.66
Carbon emissions, energy usage (kg of CO2e)	114.741
Carbon emissions, end-of-life (kg of CO2e)	1.28
Total carbon emissions, w/o use phase (kg of CO2e)	68.259
PAIA version	GaBi version 1, 2024
Display included	No
MU-MIMO	Yes
