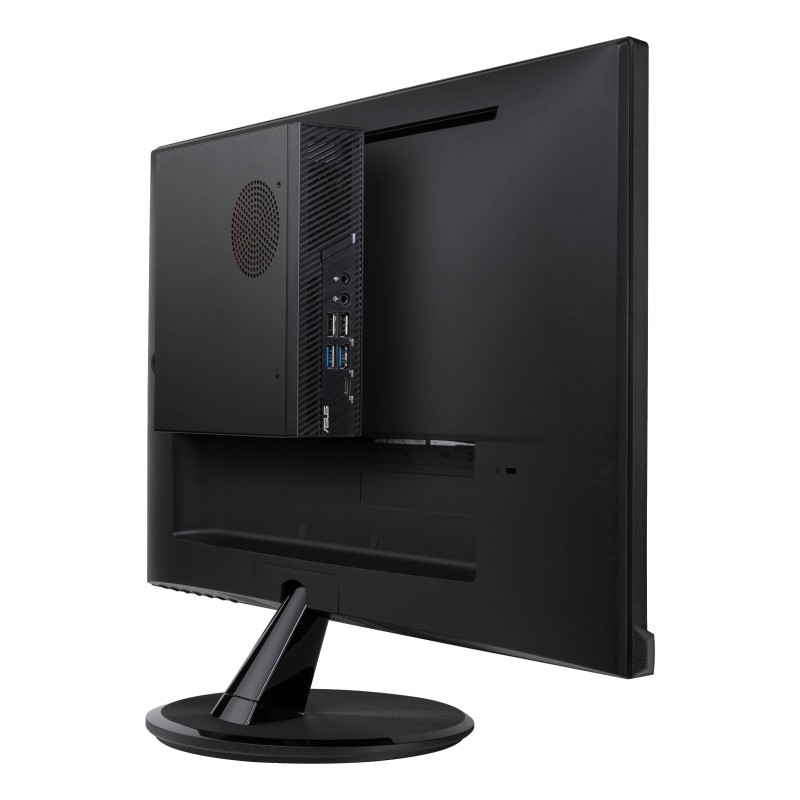

ASUS PB63-B7205AH. Processor family: Intel® Core™ i7, Processor model: i7-14700. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 2.6 lbs (1.18 kg). Product color: Black
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Processor model | i7-14700 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Number of rear USB ports | 3 |
| Number of front USB ports | 5 |
| Chassis type | Mini PC |
| Product color | Black |
| Color name | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Introduction year | 2023 |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
| Width | 6.89" (175 mm) |
| Depth | 6.89" (175 mm) |
| Height | 1.74" (44.2 mm) |
| Weight | 2.6 lbs (1.18 kg) |
| Package width | 14.2" (360 mm) |
| Package depth | 9.45" (240 mm) |
| Package height | 2.68" (68 mm) |
| Package weight | 5.75 lbs (2.61 kg) |
| Display included | No |
