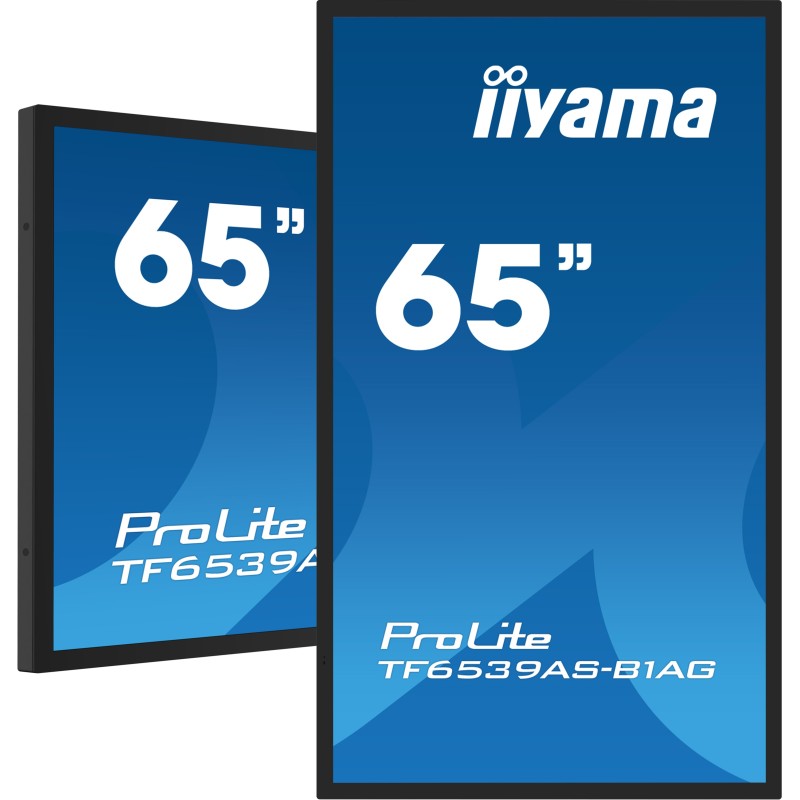

iiyama TF6539AS-B1AG, Kiosk design, 64.5", LED, 3840 x 2160 pixels, 24/7
| Display diagonal | 64.5" |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 435 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Panel type | IPS |
| LED backlight | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 40 |
| Multi-touch | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colors | 1.07 billion colors |
| Pixel pitch | 0.0146 x 0.0146" (0.372 x 0.372 mm) |
| Active display area (W x H) | 56.2 x 31.6" (1428.5 x 803.5 mm) |
| Display diagonal (metric) | 64.5" (163.9 cm) |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Surface hardness | 7H |
| Glass thickness | 0.157" (4 mm) |
| HDMI ports quantity | 2 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| USB 2.0 Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Kiosk design |
| Product color | Black |
| Placement supported | Indoor |
| VESA mounting | Yes |
| Orientation | Horizontal/Vertical |
| Screen shape | Flat |
| Panel mounting interface | 400 x 400 mm |
| Bezel width (bottom) | 1.24" (3.15 cm) |
| Bezel width (side) | 1.24" (3.15 cm) |
| Bezel width (top) | 1.24" (3.15 cm) |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| International Protection (IP) code | IP65 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 183 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 102 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor architecture | ARM Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Operating system version | 11 |
| Display width | 58.9" (1495 mm) |
| Display depth | 2.6" (66 mm) |
| Display height | 34.3" (870 mm) |
| Display weight | 118.4 lbs (53.7 kg) |
| Width | 58.9" (1495 mm) |
| Depth | 2.6" (66 mm) |
| Height | 34.3" (870 mm) |
| Weight | 118.4 lbs (53.7 kg) |
| Width (with stand) | 58.9" (1495 mm) |
| Depth (with stand) | 2.6" (66 mm) |
| Height (with stand) | 34.3" (870 mm) |
| Weight (with stand) | 118.4 lbs (53.7 kg) |
| Package width | 65" (1650 mm) |
| Package depth | 7.64" (194 mm) |
| Package height | 39.8" (1010 mm) |
| Package volume | 65000 cm³ |
| Package weight | 143.3 lbs (65 kg) |
| Handheld remote control | Yes |
| Batteries included | Yes |
| Cables included | AC, USB, HDMI |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Ethernet LAN | Yes |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Maximum refresh rate | 60 Hz |
| Quick start guide | Yes |
| Viewable size, horizontal | 56.2" (142.8 cm) |
| Viewable size, vertical | 31.6" (80.3 cm) |
| Brightness | 435 cd/m² |
| Display surface | Matt |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| User controls | picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset) |
