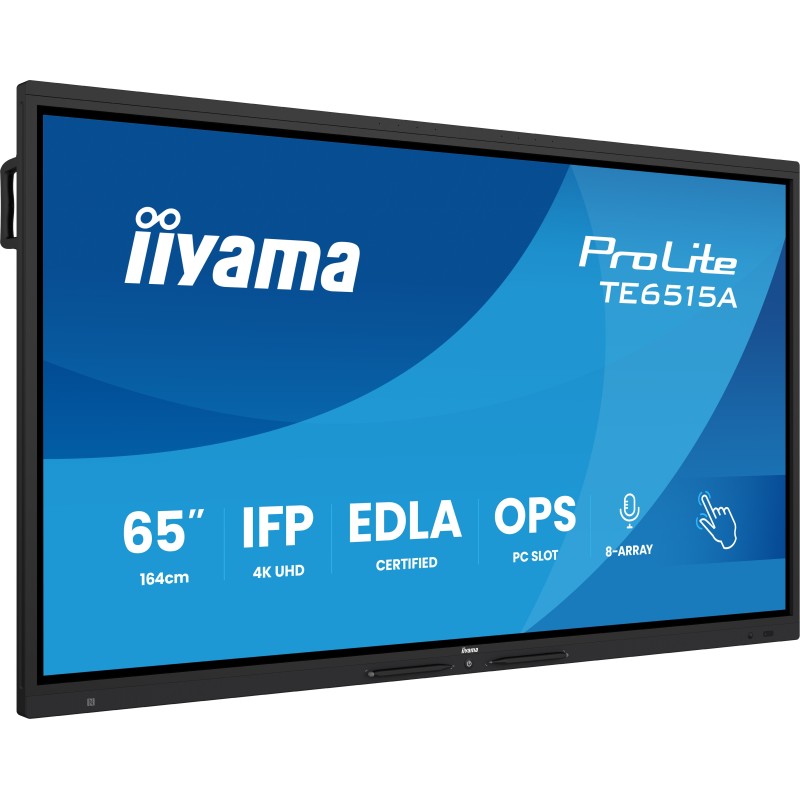

iiyama TE6515A-B2AG, Kiosk design, 64.5", 3840 x 2160 pixels, Wi-Fi, 24/7
| Display diagonal | 64.5" |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 550 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Panel type | VA |
| Touchscreen technology | Infrared |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colors | 1.07 billion colors |
| Pixel pitch | 0.00488 x 0.00488" (0.124 x 0.124 mm) |
| Active display area (W x H) | 56.2 x 31.6" (1428.5 x 803.5 mm) |
| Display diagonal (metric) | 64.5" (163.9 cm) |
| Horizontal scan range | 30 - 135 kHz |
| Surface hardness | 7H |
| Touch response time | 5 ms |
| Glass thickness | 0.126" (3.2 mm) |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 4 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C, USB Type-A, USB Type-B |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232C | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| OPS module slot | Yes |
| Audio Return Channel (ARC) | Yes |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Product design | Kiosk design |
| Product color | Black |
| Placement supported | Indoor |
| VESA mounting | Yes |
| Orientation | Horizontal |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.84" (4.67 cm) |
| Bezel width (side) | 0.657" (1.67 cm) |
| Bezel width (top) | 1.35" (3.43 cm) |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Positioning accuracy | 0.0394" (1 mm) |
| Purpose | Education |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | CAT, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 170 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 170 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Display width | 58.6" (1489.1 mm) |
| Display depth | 3.43" (87.1 mm) |
| Display height | 35.9" (911.8 mm) |
| Display weight | 95.9 lbs (43.5 kg) |
| Width | 58.6" (1489.1 mm) |
| Depth | 3.43" (87.1 mm) |
| Height | 35.9" (911.8 mm) |
| Weight | 95.9 lbs (43.5 kg) |
| Package width | 64.6" (1640 mm) |
| Package depth | 7.28" (185 mm) |
| Package height | 39.8" (1010 mm) |
| Package weight | 104.5 lbs (47.4 kg) |
| Handheld remote control | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Cables included | AC, USB, HDMI |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Quantity per pallet | 6 pc(s) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| OPS slot | 1 |
| Sustainability certificates | EPEAT, ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Quick start guide | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Built-in microphone | Yes |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Audio in (mini jack) | Yes |
| Playback media | Y |
| User controls | personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device) |
