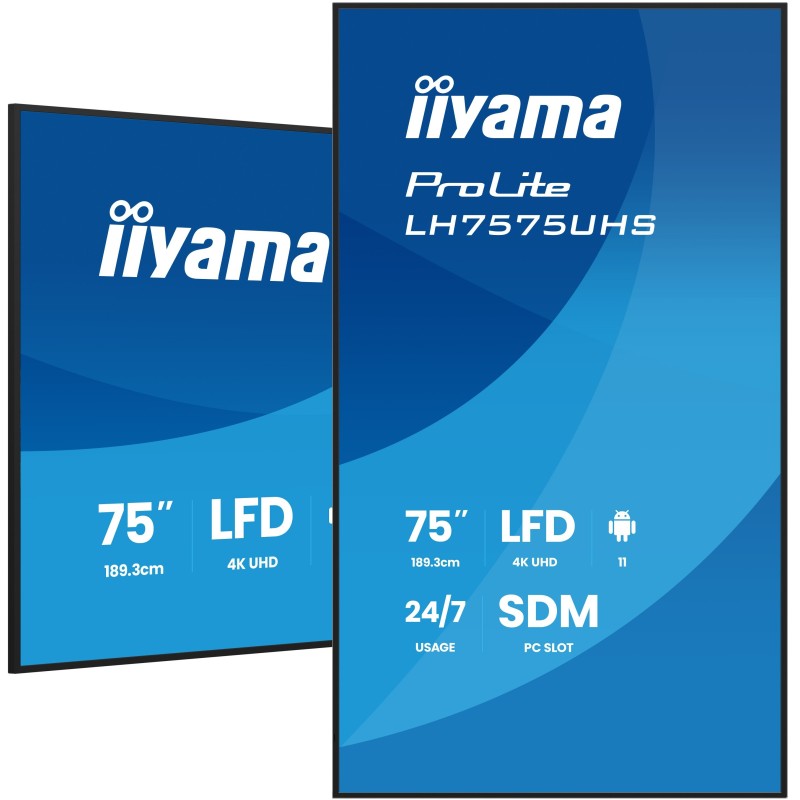

iiyama LH7575UHS-B2AG, Digital signage flat panel, 75", LCD, 3840 x 2160 pixels, Wi-Fi, 24/7
| Display diagonal | 75" |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colors | 1.07 billion colors |
| Pixel pitch | 0.0169 x 0.0169" (0.429 x 0.429 mm) |
| Active display area (W x H) | 65 x 36.5" (1650 x 928 mm) |
| Display diagonal (metric) | 74.5" (189.3 cm) |
| Horizontal scan range | 28 - 160 kHz |
| Color depth | 8 bit |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| RGB color space | NTSC |
| Color gamut | 72% |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| HDMI version | 2.0 |
| VGA (D-Sub) input ports | 0 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PC Audio in | Yes |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Audio Return Channel (ARC) | Yes |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
| Product color | Black |
| Placement supported | Indoor |
| VESA mounting | Yes |
| Orientation | Horizontal/Vertical |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 0.598" (1.52 cm) |
| Bezel width (side) | 0.591" (1.5 cm) |
| Bezel width (top) | 0.598" (1.52 cm) |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Mounting type | Wall |
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 187 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 187 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Display width | 66.1" (1679.5 mm) |
| Display depth | 2.17" (55 mm) |
| Display height | 37.7" (958.5 mm) |
| Display weight | 65 lbs (29.5 kg) |
| Width | 66.1" (1679.5 mm) |
| Depth | 2.17" (55 mm) |
| Height | 37.7" (958.5 mm) |
| Weight | 65 lbs (29.5 kg) |
| Package width | 74.1" (1883 mm) |
| Package depth | 7.32" (186 mm) |
| Package height | 44.9" (1140 mm) |
| Package weight | 90.4 lbs (41 kg) |
| Handheld remote control | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI, RS-232 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Harmonized System (HS) code | 85285210 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Quick start guide | Yes |
| Audio output | 3.5mm |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Power supply type | Internal |
| Housing material | Metal |
| Plug and Play | Yes |
| Daisy Chain DisplayPort | Yes |
| Playback media | Y |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, group ID, monitor info, DP version, DP monitors, HDMI version, configuration 2 reset), advanced options (no signal image, motorized stand, IR control, power LED light, tiling, off timer, schedule, HDMI with One Wire, HDMI with One Wire power off, Signal FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced options reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device) |
