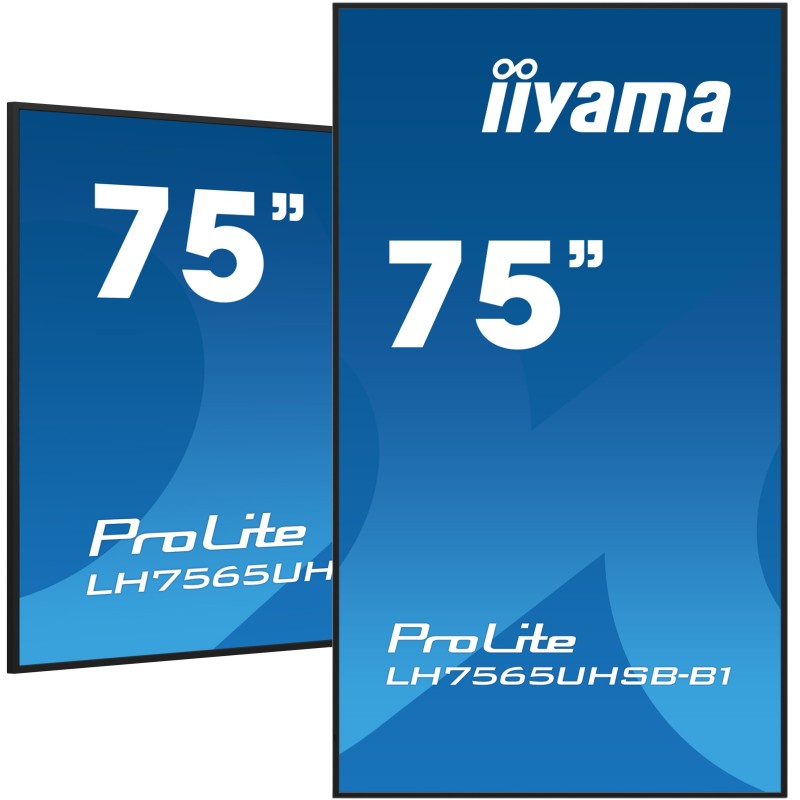

iiyama LH7565UHSB-B1, Kiosk design, 74.5", LED, 3840 x 2160 pixels, Wi-Fi, 24/7
| Display diagonal | 74.5" |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 800 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colors | 1.07 billion colors |
| Pixel pitch | 0.0169 x 0.0169" (0.429 x 0.429 mm) |
| Active display area (W x H) | 65 x 36.5" (1650 x 928 mm) |
| Display diagonal (metric) | 74.4" (189 cm) |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 1% |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) in | 1 |
| RS-232 interface | Yes |
| RS-232C | Yes |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Kiosk design |
| Product color | Black |
| Placement supported | Indoor/outdoor |
| VESA mounting | Yes |
| Orientation | Horizontal/Vertical |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 0.587" (1.49 cm) |
| Bezel width (side) | 0.587" (1.49 cm) |
| Bezel width (top) | 0.587" (1.49 cm) |
| Bezel colour | Black |
| Purpose | Commercial |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 107 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 107 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A73 |
| Processor cores | 8 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Display width | 66.1" (1679.5 mm) |
| Display depth | 2.17" (55 mm) |
| Display height | 37.7" (958.5 mm) |
| Display weight | 63.9 lbs (29 kg) |
| Width | 66.1" (1679.5 mm) |
| Depth | 2.17" (55 mm) |
| Height | 37.7" (958.5 mm) |
| Weight | 63.9 lbs (29 kg) |
| Width (with stand) | 66.1" (1679.5 mm) |
| Depth (with stand) | 2.17" (55 mm) |
| Height (with stand) | 37.7" (958.5 mm) |
| Weight (with stand) | 63.9 lbs (29 kg) |
| Package width | 74.1" (1883 mm) |
| Package depth | 7.32" (186 mm) |
| Package height | 44.9" (1140 mm) |
| Package weight | 89.3 lbs (40.5 kg) |
| Handheld remote control | Yes |
| Cables included | AC, HDMI, RS-232 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | -20 - 60% |
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Sustainability certificates | ErP |
| Compliance certificates | CE, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Quick start guide | Yes |
| Power supply type | Internal |
| Playback media | Y |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset) |
