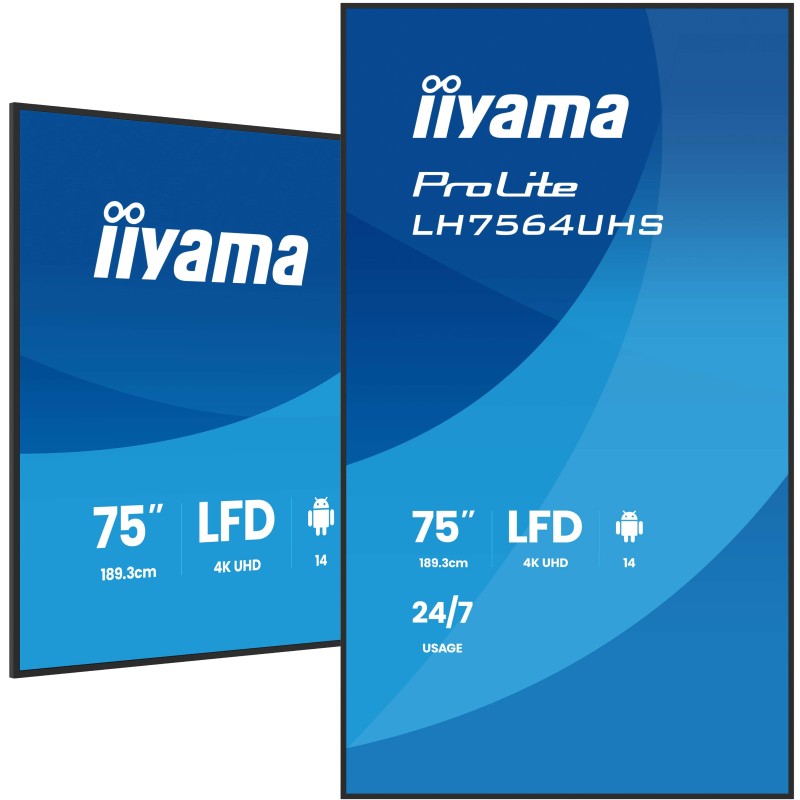

iiyama LH7564UHS-B1AG, Digital signage flat panel, 75", 3840 x 2160 pixels, Wi-Fi, 24/7
| Display diagonal | 75" |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Panel type | VA |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colors | 1.07 billion colors |
| Pixel pitch | 0.0169 x 0.0169" (0.43 x 0.43 mm) |
| Active display area (W x H) | 65 x 36.5" (1650.2 x 928.3 mm) |
| Display diagonal (metric) | 74.6" (189.5 cm) |
| Number of displays | 1 |
| Horizontal scan range | 57 - 62 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| HDMI ports quantity | 2 |
| USB port | Yes |
| HDMI version | 2.0 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 15 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
| Product color | Black |
| Placement supported | Indoor |
| VESA mounting | Yes |
| Orientation | Horizontal/Vertical |
| Panel mounting interface | 500 x 500 mm |
| Bezel width (bottom) | 0.504" (1.28 cm) |
| Bezel width (side) | 0.504" (1.28 cm) |
| Bezel width (top) | 0.504" (1.28 cm) |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 1.4/2.0 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 219 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 219 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Display width | 66.1" (1679 mm) |
| Display depth | 2.71" (68.8 mm) |
| Display height | 37.7" (957.1 mm) |
| Display weight | 61.1 lbs (27.7 kg) |
| Width | 66.1" (1679 mm) |
| Depth | 2.71" (68.8 mm) |
| Height | 37.7" (957.1 mm) |
| Weight | 61.1 lbs (27.7 kg) |
| Package width | 72.4" (1840 mm) |
| Package depth | 6.97" (177 mm) |
| Package height | 43.8" (1112 mm) |
| Package weight | 86.2 lbs (39.1 kg) |
| Handheld remote control | Yes |
| Batteries included | No |
| Cables included | AC, HDMI, RS-232 |
| Mounting kit | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Quick start guide | Yes |
| Power supply type | Internal |
| Playback media | Y |
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export) |
