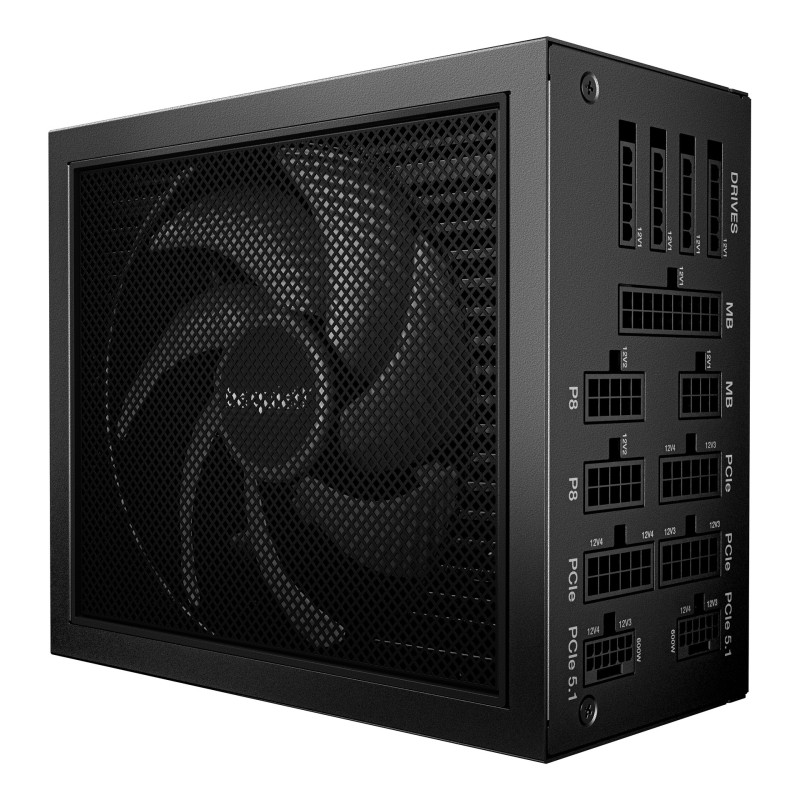

be quiet! Dark Power 14 1200 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black

be quiet! Dark Power 14 1200 W - 80 Plus Titanium. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1300 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 23.6" (60 cm), SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product color: Black, Cooling type: Active, Fan diameter: 5.31" (13.5 cm). Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus

Total power	1200 W
AC input voltage	100 - 240 V
Peak power	1300 W
AC input frequency	50/60 Hz
Maximum input current (@110V)	10 A
Maximum input current (@220V)	5 A
Power factor	0.98
Number of +12V rail(s)	4
Combined power (+3.3V)	120 W
Combined power (+12V)	1200 W
Combined power (+5V)	120 W
Max output current (+3.3V)	25 A
Max output current (+12V1)	33 A
Max output current (+12V2)	33 A
Max output current (+12V3)	45 A
Max output current (+12V4)	45 A
Max output current (+5V)	24 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	3 A
Hold time	19.5 ms
Efficiency	93.1%
Power protection features	Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	2
Motherboard power cable length	23.6" (60 cm)
SATA power cable length	600,750,900,1050 mm
Number of SATA power cables	13
Peripheral (Molex) power cable length	900,1050 mm
EPS power connector (8-pin)	Yes
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (12-pin)	2
PCI Express power cable length	23.6" (60 cm)
CPU power connector (4+4 pin)	Yes
CPU power cable length	27.6" (70 cm)
ATX power connector (20+4 pin)	Yes
PCI Express connector	Yes
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Titanium
ATX version	3.1
EPS version	2.92
Noise level	21.1 dB
Bearing technology	FDB
Mean time between failures (MTBF)	100000 h
Product color	Black
Cooling type	Active
Fan diameter	5.31" (13.5 cm)
Number of fans	1 fan(s)
Fan speed	0 - 2100 RPM
On/off switch	Yes
On/off fan switch	Yes
Operating temperature (T-T)	0 - 40 °C
Compliance certificates	CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Width	5.91" (150 mm)
Depth	6.89" (175 mm)
Height	3.39" (86 mm)
Weight	5.07 lbs (2.3 kg)
Manual	Yes
Manual languages	Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
Package width	9.06" (230 mm)
Package depth	4.96" (126 mm)
Package height	14" (355 mm)
Package weight	8.16 lbs (3.7 kg)
Sustainability certificates	ENERGY STAR, ErP, Triman
Shipping (inner) case length	20.8" (52.8 cm)
Shipping (inner) case width	14.5" (36.8 cm)
Shipping (inner) case height	10.2" (26 cm)
Shipping (inner) case net weight	44.3 lbs (20.1 kg)
Quantity per shipping (inner) case	4 pc(s)
Screws included	Yes
Cable ties included	Yes
