Banner

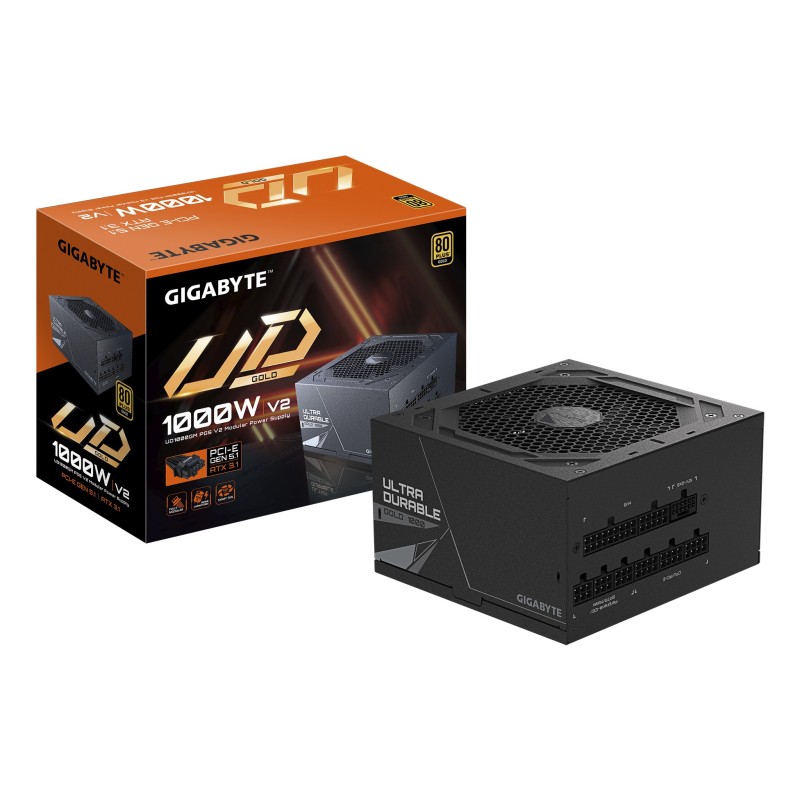

GIGABYTE UD1000GM PG5 V2, 1000 W, 100 - 240 V, 50/60 Hz, 15 - 6.5 A, Active, 125 W
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 6.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power cable length | 24" (61 cm) |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power cable length | 120,150,500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 27.6" (70 cm) |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 23.6" (60 cm) |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Number of EPS connectors | 2 |
| Cabling type | Fully-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 h |
| Product color | Black |
| Cooling type | Active |
| Fan diameter | 4.72" (12 cm) |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Width | 5.91" (150 mm) |
| Depth | 5.51" (140 mm) |
| Height | 3.39" (86 mm) |
| Weight | 5.47 lbs (2.48 kg) |
| Package width | 24.3" (618 mm) |
| Package depth | 10.6" (269 mm) |
| Package height | 8.31" (211 mm) |
| Package weight | 5.82 lbs (2.64 kg) |
| Package type | Box |
| Warranty period | 10 year(s) |
