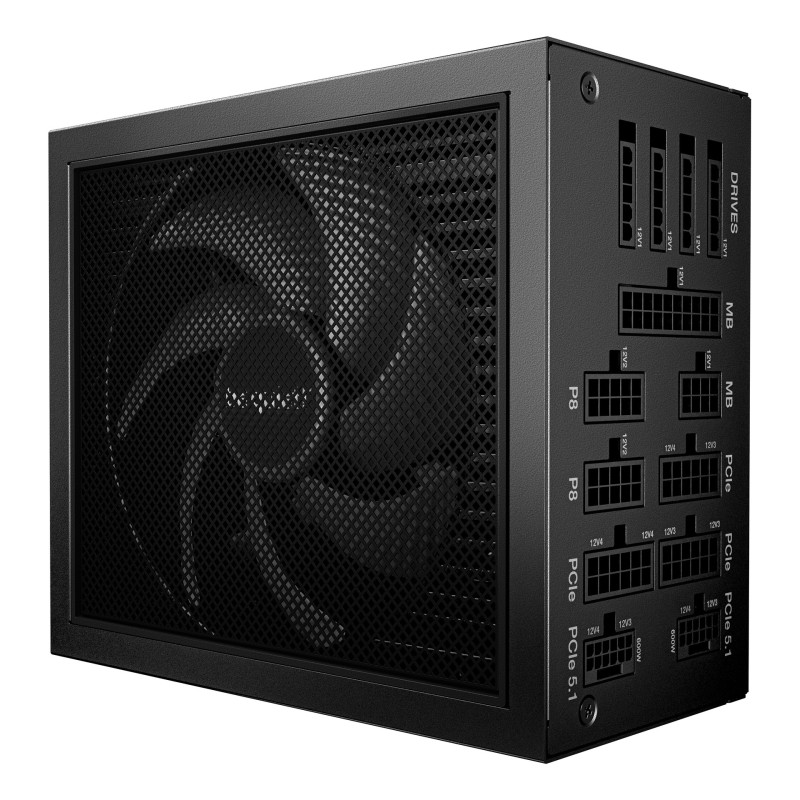

be quiet! Dark Power 14 1200 W - 80 Plus Titanium, 1200 W, 100 - 240 V, 1300 W, 50/60 Hz, 10 A, 5 A
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| Peak power | 1300 W |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power factor | 0.98 |
| Number of +12V rail(s) | 4 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 33 A |
| Max output current (+12V2) | 33 A |
| Max output current (+12V3) | 45 A |
| Max output current (+12V4) | 45 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 19.5 ms |
| Efficiency | 93.1% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Motherboard power cable length | 23.6" (60 cm) |
| SATA power cable length | 600,750,900,1050 mm |
| Number of SATA power cables | 13 |
| Peripheral (Molex) power cable length | 900,1050 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12-pin) | 2 |
| PCI Express power cable length | 23.6" (60 cm) |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 27.6" (70 cm) |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 21.1 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product color | Black |
| Cooling type | Active |
| Fan diameter | 5.31" (13.5 cm) |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2100 RPM |
| On/off switch | Yes |
| On/off fan switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Compliance certificates | CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus |
| Width | 5.91" (150 mm) |
| Depth | 6.89" (175 mm) |
| Height | 3.39" (86 mm) |
| Weight | 5.07 lbs (2.3 kg) |
| Manual | Yes |
| Manual languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian |
| Package width | 9.06" (230 mm) |
| Package depth | 4.96" (126 mm) |
| Package height | 14" (355 mm) |
| Package weight | 8.16 lbs (3.7 kg) |
| Sustainability certificates | ENERGY STAR, ErP, Triman |
| Shipping (inner) case length | 20.8" (52.8 cm) |
| Shipping (inner) case width | 14.5" (36.8 cm) |
| Shipping (inner) case height | 10.2" (26 cm) |
| Shipping (inner) case net weight | 44.3 lbs (20.1 kg) |
| Quantity per shipping (inner) case | 4 pc(s) |
| Screws included | Yes |
| Cable ties included | Yes |
