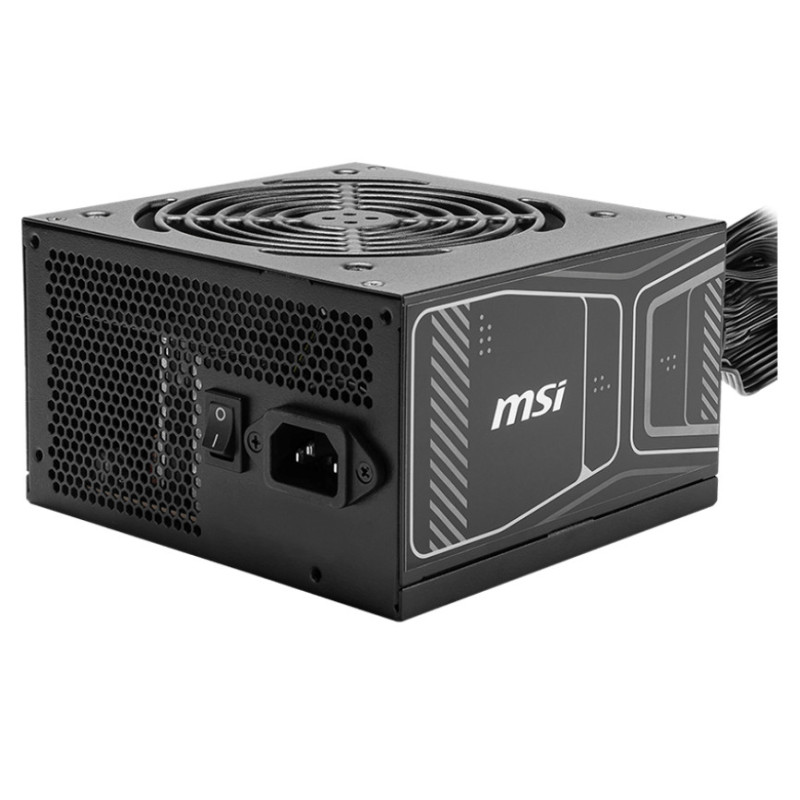

MSI MAG A750GN PCIE5 power supply unit 750 W 20+4 pin ATX ATX Black

MSI MAG A750GN PCIE5. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 21.7" (55 cm), SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 5.91" (150 mm), Depth: 5.51" (140 mm), Height: 3.39" (86 mm)

Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Maximum input current (@110V)	47 A
Maximum input current (@220V)	63 A
Power Factor Correction (PFC) type	Active
Number of +12V rail(s)	1
Combined power (+3.3V)	110 W
Combined power (+12V)	750 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Efficiency	90%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	4
Motherboard power cable length	21.7" (55 cm)
Number of SATA power connectors	4
SATA power cable length	150,450 mm
Peripheral (Molex) power cable length	500 mm
EPS power connector (8-pin)	No
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6-pin)	0
PCI Express power connectors (6+2 pin)	2
PCI Express power connectors (8-pin)	0
PCI Express power connectors (12+4 pin)	0
PCI Express power connectors (12-pin)	0
CPU power connector (4+4 pin)	Yes
ATX Power connector (24-pin)	No
ATX power connector (20+4 pin)	No
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	Sleeve
Product color	Black
Cooling type	Active
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Illumination	No
On/off switch	Yes
Width	5.91" (150 mm)
Depth	5.51" (140 mm)
Height	3.39" (86 mm)
Package type	Box
