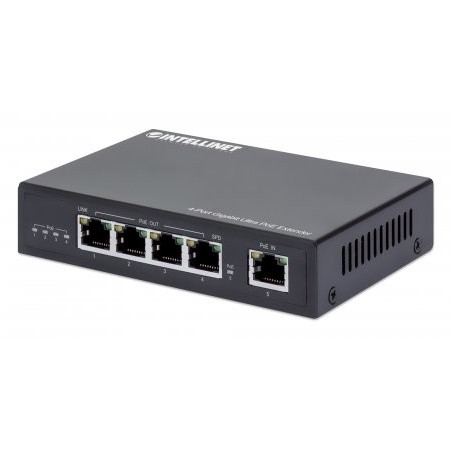

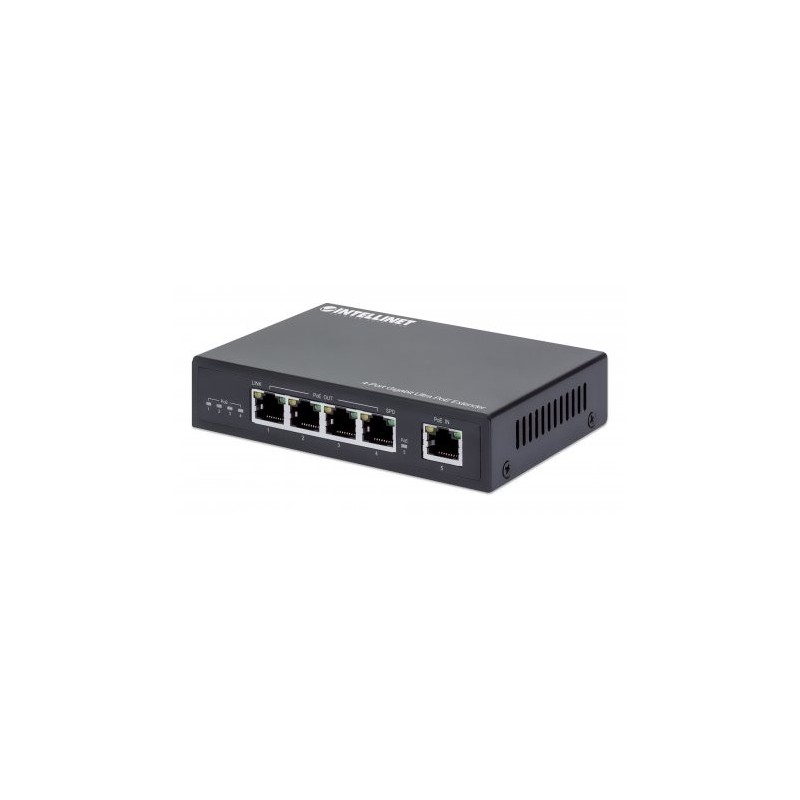

Intellinet 561617 network extender Network transmitter Black 10, 100, 1000 Mbit/s

Intellinet 561617. Type: Network transmitter, Maximum transfer distance: 3937" (100 m), Data transfer rate: 10000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Product color: Black, Housing material: Metal, LED indicators: Activity, Link, PoE. Total Power over Ethernet (PoE) budget: 90 W, Power over Ethernet (PoE) voltage range: 44 - 57 V. Width: 5.12" (130 mm), Depth: 3.39" (86 mm), Height: 1.14" (29 mm)

Type	Network transmitter
Maximum transfer distance	3937" (100 m)
Data transfer rate	10000 Mbit/s
Cable types supported	Cat5e
Ethernet LAN data rates	10,100,1000 Mbit/s
Jumbo frames support	Yes
Duplex system	Full
MAC address table	2048 entries
Flow control support	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports	5
Power over Ethernet (PoE) ports quantity	4
Product color	Black
Housing material	Metal
LED indicators	Activity, Link, PoE
Certification	FCC A, CE
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	90 W
Power over Ethernet (PoE) voltage range	44 - 57 V
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	20 - 85%
Width	5.12" (130 mm)
Depth	3.39" (86 mm)
Height	1.14" (29 mm)
Weight	11.9 oz (337 g)
Manual	Yes
Compliance certificates	CE, RoHS, Federal Communications Commission (FCC), UL
Harmonized System (HS) code	85176990
