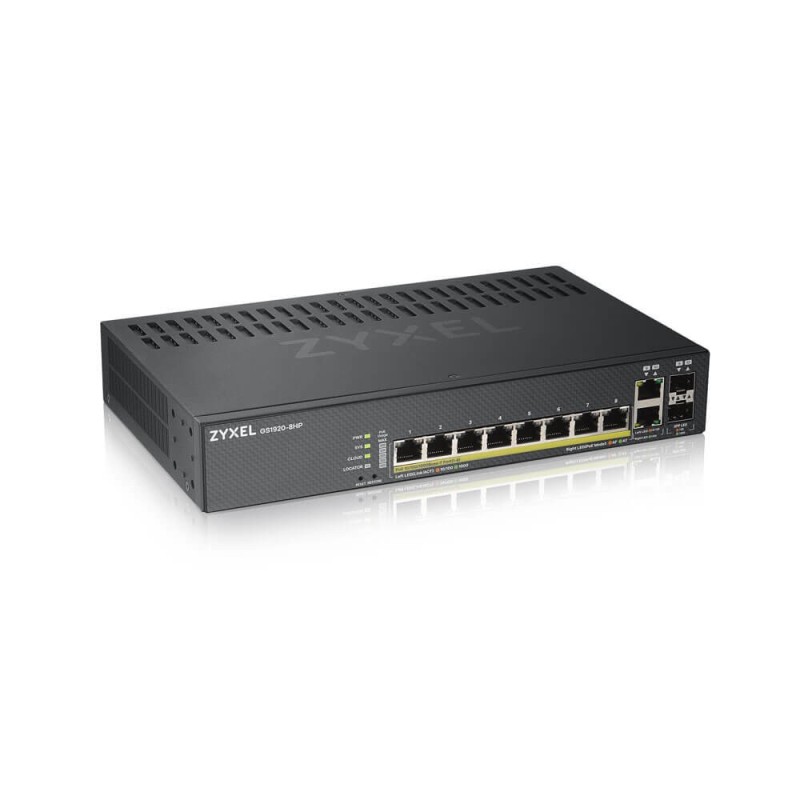

Zyxel GS1920-8HPV2. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Wall mountable
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN |
| Fiber ethernet cabling technology | 1000BASE-X |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 15 Mpps |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv3 |
| MAC address filtering | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN, Port-based authentication |
| Password protection | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| CPU defense | Yes |
| Queue scheduling algorithms | SPQ, WFQ, Weighted Round Robin (WRR) |
| Multicast support | Yes |
| Rack mounting | No |
| Product color | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
| Safety | LVD, BSMI |
| Electromagnetic compatibility | FCC 15 A, CE A, BSMI EMC |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 513985 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 161.8 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 130 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 551.74 BTU/h |
| Width | 10.5" (267 mm) |
| Depth | 6.38" (162 mm) |
| Height | 1.73" (44 mm) |
| Weight | 4.19 lbs (1.9 kg) |
| Cables included | AC |
| Package width | 14.8" (375 mm) |
| Package depth | 9.25" (235 mm) |
| Package height | 2.4" (61 mm) |
| Package weight | 6.02 lbs (2.73 kg) |
| Certification | RoHS |
| Harmonized System (HS) code | 85176990 |
