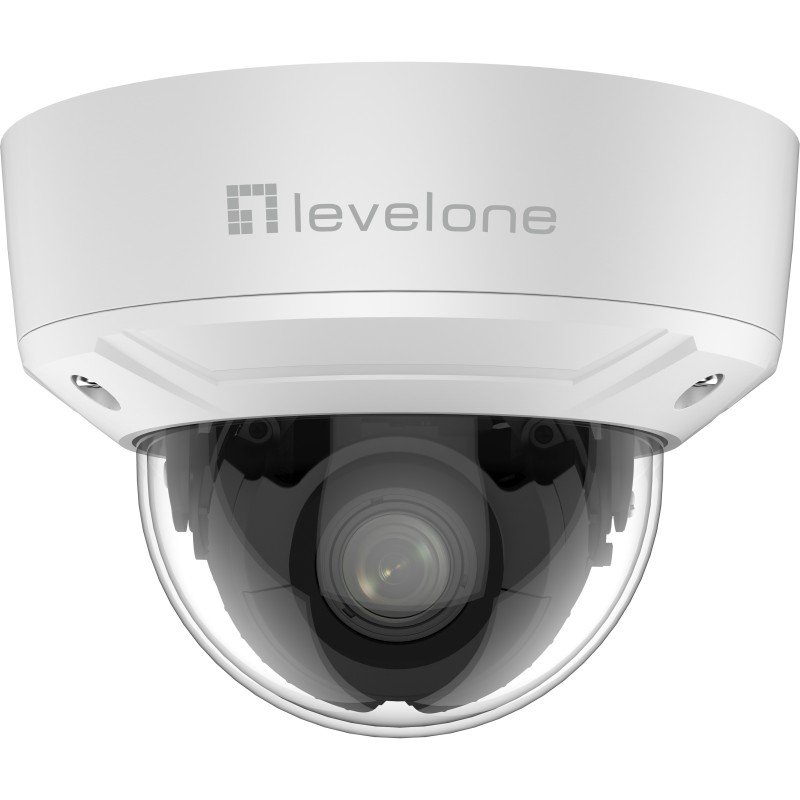

LevelOne FCS-3616 security camera Dome CCTV security camera Indoor & outdoor 3200 x 1800 pixels Ceiling

LevelOne FCS-3616. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product color: White, Form factor: Dome. Lens viewing angle, horizontal: 35 - 106°, Lens viewing angle, vertical: 20 - 56°, Lens viewing angle, diagonal: 41 - 127°. Sensor type: CMOS, Optical sensor size: 1/2.4". Optical zoom: 4.3x, Digital zoom: 8x, Focal length range: 2.8 - 12 mm

Type	CCTV security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Mounting type	Ceiling
Product color	White
Form factor	Dome
LED indicators	Activity, Power
Protection features	Vandal proof, Weatherproof
International Protection (IP) code	IP66
IK code	IK10
Country of origin	China
Minimum illumination	0 lx
Lens viewing angle, horizontal	35 - 106°
Lens viewing angle, vertical	20 - 56°
Lens viewing angle, diagonal	41 - 127°
Camera shutter speed	1/3 - 1/100000 s
Sensor type	CMOS
Optical sensor size	1/2.4"
Progressive scan	Yes
Number of lenses	1
Optical zoom	4.3x
Digital zoom	8x
Focal length range	2.8 - 12 mm
Night vision	Yes
Night vision distance	40 m
LED type	IR
Infra-red wavelength	850 nm
Maximum resolution	3200 x 1800 pixels
Total megapixels	6 MP
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800
Frame rate	30 fps
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Gain control type	Auto
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Back Light Compensation (BLC)	Yes
Audio system	2-way
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols	TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	512 GB
Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes
Password protection	Yes
Video motion detection	Yes
Active tampering alarm	Yes
Intelligent Video Surveillance (IVS) system features	Human detection, Intrusion, Line crossing detection, Missing object, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
Anti-flicker	Yes
Heartbeat	Yes
Mirror	Yes
Digital watermark	Yes
Power source type	DC, PoE
Power consumption (max)	10.5 W
Power consumption (Power over Ethernet (PoE))	12.5 W
DC output voltage	12
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Width	5.24" (133.1 mm)
Depth	6.04" (153.5 mm)
Height	6.04" (153.5 mm)
Weight	2.43 lbs (1.1 kg)
Package width	9.61" (244 mm)
Package depth	6.85" (174 mm)
Package height	6.81" (173 mm)
Package weight	3.75 lbs (1.7 kg)
Package type	Box
Compliance certificates	CE, Federal Communications Commission (FCC), UKCA
Number of cameras	1
Screws included	Yes
Manual	Yes
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height	56.3" (143 cm)
Customs product code (TARIC)	8525890000
Harmonized System (HS) code	852589
Master (outer) case width	24" (610 mm)
Master (outer) case length	17.3" (440 mm)
Master (outer) case height	21.5" (546 mm)
Master (outer) case weight	28.7 lbs (13 kg)
Quantity per master (outer) case	8 pc(s)
