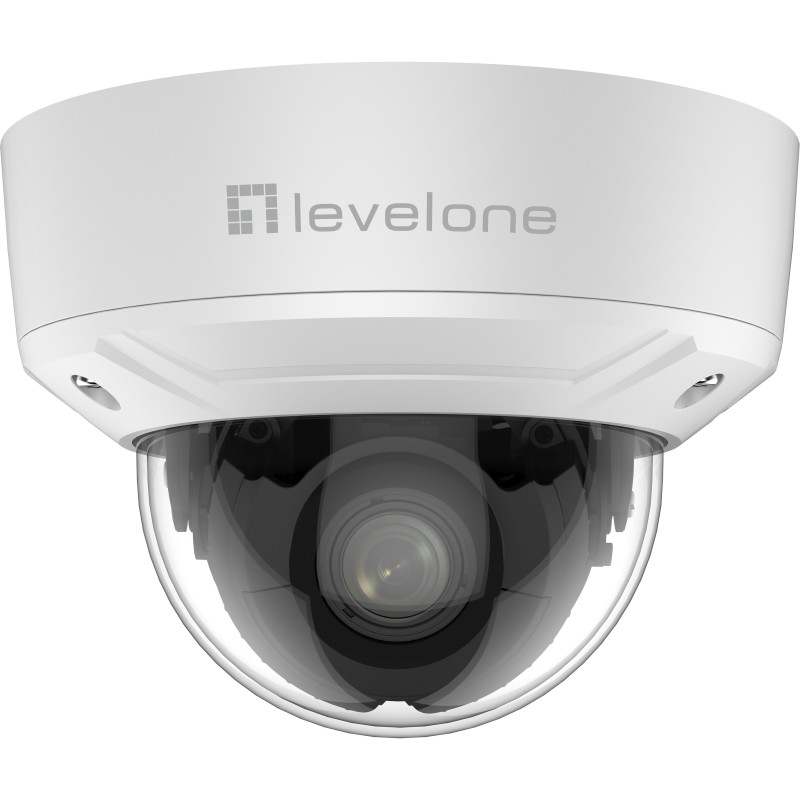

LevelOne FCS-3461 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

LevelOne FCS-3461. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product color: White, Form factor: Dome. Lens viewing angle, horizontal: 38 - 98°, Lens viewing angle, vertical: 21 - 52°, Lens viewing angle, diagonal: 43 - 115°. Sensor type: CMOS, Optical sensor size: 1/2.7". Optical zoom: 4x, Digital zoom: 16x, Focal length range: 2.8 - 12 mm

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Dynamic range	120 dB
Mounting type	Ceiling
Product color	White
Form factor	Dome
LED indicators	Activity, Power
Protection features	Vandal proof, Weatherproof
International Protection (IP) code	IP67
Country of origin	China
Minimum illumination	0 lx
Lens viewing angle, horizontal	38 - 98°
Lens viewing angle, vertical	21 - 52°
Lens viewing angle, diagonal	43 - 115°
Camera shutter speed	1/3 - 1/100000 s
Sensor type	CMOS
Optical sensor size	1/2.7"
Progressive scan	Yes
Number of lenses	1
Zoom capability	Yes
Optical zoom	4x
Digital zoom	16x
Focal length range	2.8 - 12 mm
Maximum aperture number	1.6
Night vision	Yes
Night vision distance	30 m
LED type	IR
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate	30 fps
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Gain control type	Auto
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Back Light Compensation (BLC)	Yes
Audio system	1-way
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols	TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Password protection	Yes
Video motion detection	Yes
Active tampering alarm	Yes
Intelligent Video Surveillance (IVS) system features	Intrusion, Line crossing detection, Missing object
Anti-flicker	Yes
Heartbeat	Yes
Mirror	Yes
Digital watermark	Yes
Power source type	DC, PoE
Power consumption (max)	10 W
Power consumption (Power over Ethernet (PoE))	12 W
DC output voltage	12
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Width	4.57" (116 mm)
Depth	6.02" (153 mm)
Height	6.02" (153 mm)
Weight	28.2 oz (800 g)
Package width	9.41" (239 mm)
Package depth	6.65" (169 mm)
Package height	6.3" (160 mm)
Package weight	2.87 lbs (1.3 kg)
Package type	Box
Compliance certificates	CE, Federal Communications Commission (FCC), UKCA
Number of cameras	1
Screws included	Yes
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height	56.3" (143 cm)
Customs product code (TARIC)	8525890000
Harmonized System (HS) code	852589
Master (outer) case width	22.4" (568 mm)
Master (outer) case length	13.6" (345 mm)
Master (outer) case height	23.2" (590 mm)
Master (outer) case weight	35.3 lbs (16 kg)
Quantity per master (outer) case	12 pc(s)
