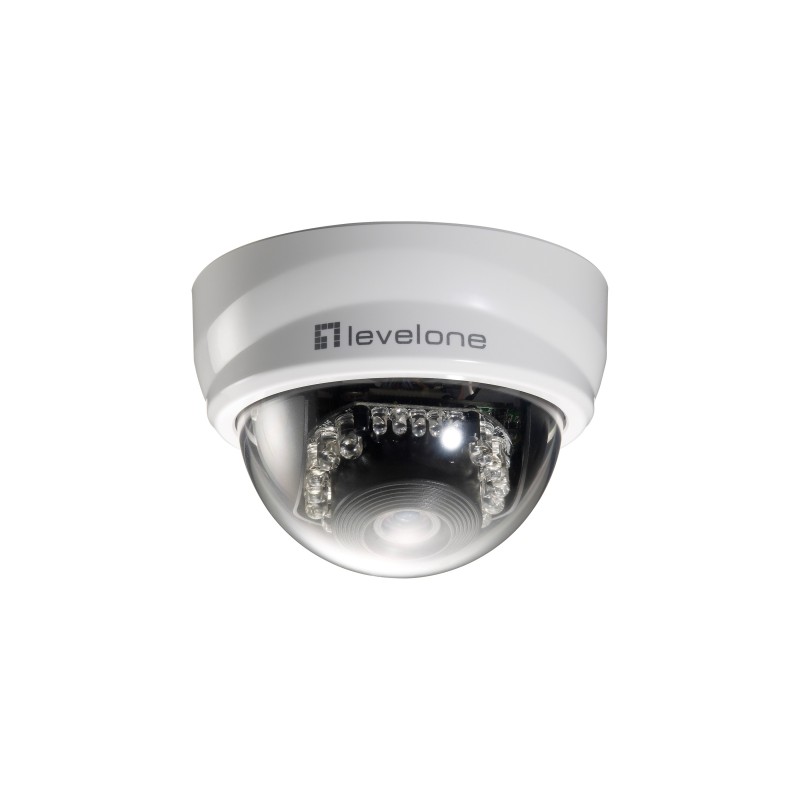

LevelOne FCS-3101, IP security camera, Indoor & outdoor, Wired, CE, FCC, Onvif, Ceiling/Desk, Black, White
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE, FCC, Onvif |
| Mounting type | Ceiling/Desk |
| Product color | Black, White |
| Form factor | Dome |
| LED indicators | Link, Power |
| Country of origin | Taiwan |
| Minimum illumination | 1 lx |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30 - 1/1000000 s |
| Sensor type | CMOS |
| Optical sensor size | 1/2.7" |
| Progressive scan | Yes |
| Zoom capability | Yes |
| Focus adjustment | 2.0 |
| Fixed focal length | 0.157" (4 mm) |
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 19 |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | MPEG4 |
| Video compression formats | H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 240p, 480p, 720p, 1080p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Automatic gain control | Yes |
| Full HD | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Flip & mirror | Yes |
| Time stamp overlay | Yes |
| Audio system | 1-way |
| Built-in microphone | Yes |
| Voice codecs | AMR |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Supported network protocols | TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, NTP, PPPoE, DNS, DHCP, RTSP, Samba |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Maximum memory card size | 64 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Interface | RJ-45 |
| Password protection type | User |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Motion sensor | Yes |
| Reset button | Yes |
| Power source type | PoE |
| AC input voltage | 24 V |
| Power consumption (typical) | 6 W |
| DC output current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Width | 2.48" (63 mm) |
| Depth | 2.48" (63 mm) |
| Height | 3.66" (93 mm) |
| Weight | 13.4 oz (380 g) |
| Package width | 8.07" (205 mm) |
| Package depth | 6.1" (155 mm) |
| Package height | 3.54" (90 mm) |
| Package weight | 24.7 oz (700 g) |
| Package type | Box |
| Compliance certificates | RoHS |
| Mounting kit | Yes |
| Screws included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Harmonized System (HS) code | 85258900 |
| Number of video streams | 2 |
