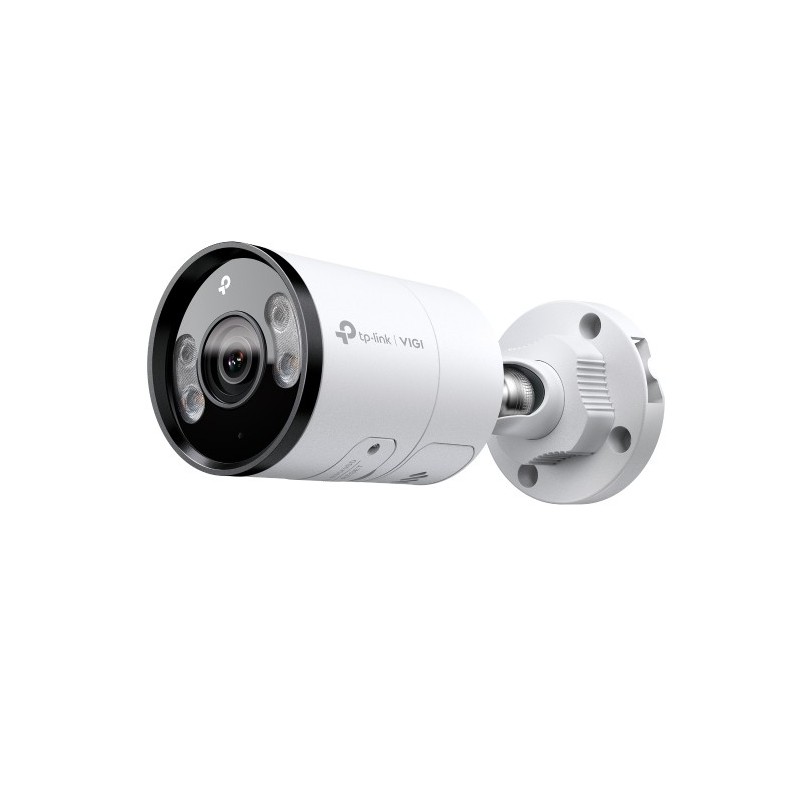

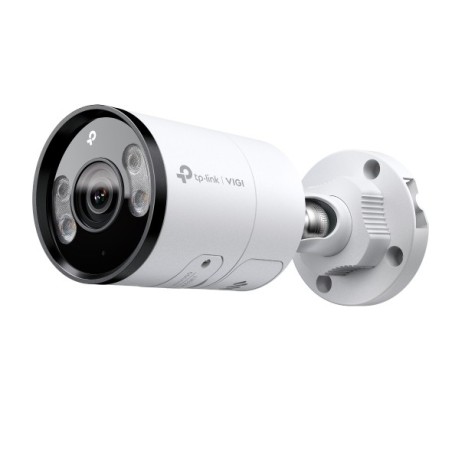

TP-Link VIGI C345 Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

TP-Link VIGI C345. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product color: White, Form factor: Bullet. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 52.7°. Sensor type: CMOS, Optical sensor size: 1/2.7". Detect distance: 4724.4" (120 m), Observe distance: 1968.5" (50 m), Recognize distance: 944.9" (24 m)

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Built-in light	Yes
Dynamic range	120 dB
Certification	CE, NTRA, VCCI, KC, BSMI, FCC, IC
Mounting type	Wall
Product color	White
Form factor	Bullet
Housing material	Metal
International Protection (IP) code	IP67
Minimum illumination	0.005 lx
Angle of rotation	360°
Lens viewing angle, horizontal	52.7°
Lens viewing angle, vertical	29°
Lens viewing angle, diagonal	60.8°
Tilt angle range	0 - 90°
Pan range	0 - 360°
Camera shutter speed	1/3 to 1/10000 s
Number of Privacy masking areas	4
Sensor type	CMOS
Optical sensor size	1/2.7"
Progressive scan	Yes
Number of lenses	1
Detect distance	4724.4" (120 m)
Observe distance	1968.5" (50 m)
Recognize distance	944.9" (24 m)
Maximum aperture number	1.6
Identify distance	472.4" (12 m)
Fixed focal length	0.236" (6 mm)
Night vision	Yes
Night vision distance	30 m
LED type	IR/White
Number of illumination LEDs	2
Infra-red wavelength	850 nm
Maximum resolution	2688 x 1520 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate	30 fps
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Privacy masking	Yes
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Region of Interest (ROI) encoding	Yes
Smart IR	Yes
Built-in speaker(s)	Yes
Audio system	2-way
Signal-to-Noise Ratio (SNR)	52 dB
Built-in microphone	Yes
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Live view	Yes
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Password protection	Yes
Video motion detection	Yes
IP address filtering	Yes
Mirror	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Reset button	Yes
Power source type	DC, PoE
Power consumption (max)	9.7 W
Power consumption (Power over Ethernet (PoE))	10.7 W
DC output voltage	12
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	7.24" (184 mm)
Depth	2.91" (74 mm)
Height	2.91" (74 mm)
Weight	18.5 oz (525 g)
Number of cameras	1
