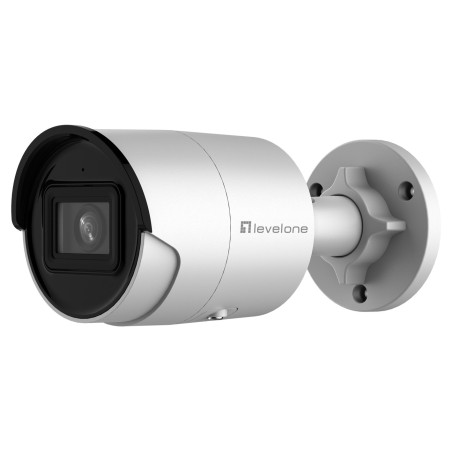

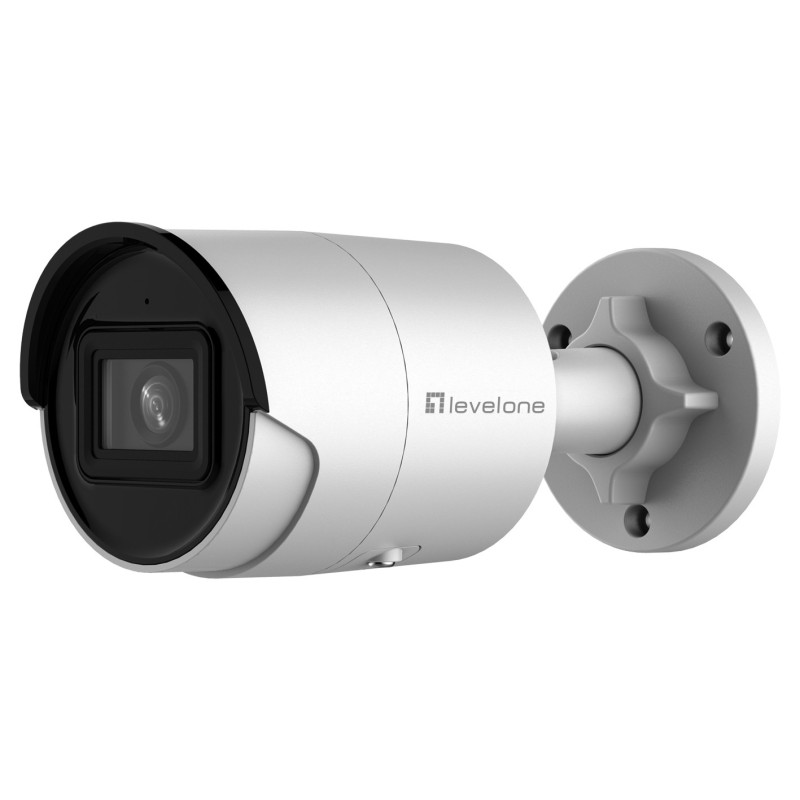

LevelOne FCS-5202 security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Wall

LevelOne FCS-5202. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product color: White, Form factor: Bullet. Lens viewing angle, horizontal: 84°, Lens viewing angle, vertical: 45°, Lens viewing angle, diagonal: 100°. Sensor type: CMOS, Optical sensor size: 1/3". Digital zoom: 8x, Fixed focal length: 0.157" (4 mm)

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Mounting type	Wall
Product color	White
Form factor	Bullet
LED indicators	Link, Power
Protection features	Vandal proof
International Protection (IP) code	IP67
Weatherproof	Yes
Country of origin	China
Minimum illumination	0 lx
Lens viewing angle, horizontal	84°
Lens viewing angle, vertical	45°
Lens viewing angle, diagonal	100°
Camera shutter speed	1/3 - 1/100000 s
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/3"
Progressive scan	Yes
Number of lenses	1
Zoom capability	Yes
Digital zoom	8x
Maximum aperture number	1.6
Fixed focal length	0.157" (4 mm)
Night vision	Yes
Night vision distance	30 m
LED type	IR
Maximum resolution	2688 x 1520 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1520
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.3af
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Ethernet LAN (RJ-45) ports	1
Password protection	Yes
Video motion detection	Yes
Active tampering alarm	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Intelligent Video Surveillance (IVS) system features	Crossing line, Face detection, Intrusion
Mirror	Yes
Human and vehicle targets classification	Yes
Audit log	Yes
Automatic Network Replenishment (ANR)	Yes
Digest authentication	Yes
Web-based management	Yes
Power source type	PoE
Power consumption (max)	7 W
Power consumption (Power over Ethernet (PoE))	6 W
DC output voltage	12
DC output current	0.5 A
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	2.76" (70 mm)
Depth	6.37" (161.7 mm)
Height	6.37" (161.7 mm)
Weight	17.3 oz (490 g)
Package width	8.5" (216 mm)
Package depth	4.76" (121 mm)
Package height	4.65" (118 mm)
Package weight	25.4 oz (720 g)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Number of cameras	1
Screws included	Yes
Resource CD	Yes
Lens mount interface	M12
Number of cartons per pallet (air)	16 pc(s)
Harmonized System (HS) code	8525801990
Pallet net height	59.1" (150 cm)
Pallet net length	31.5" (80 cm)
Pallet net width	47.2" (120 cm)
Master (outer) case width	22.4" (568 mm)
Master (outer) case length	13.6" (345 mm)
Master (outer) case height	23.2" (590 mm)
Master (outer) case weight	46.3 lbs (21 kg)
Quantity per master (outer) case	24 pc(s)
Sustainability compliance	Yes
