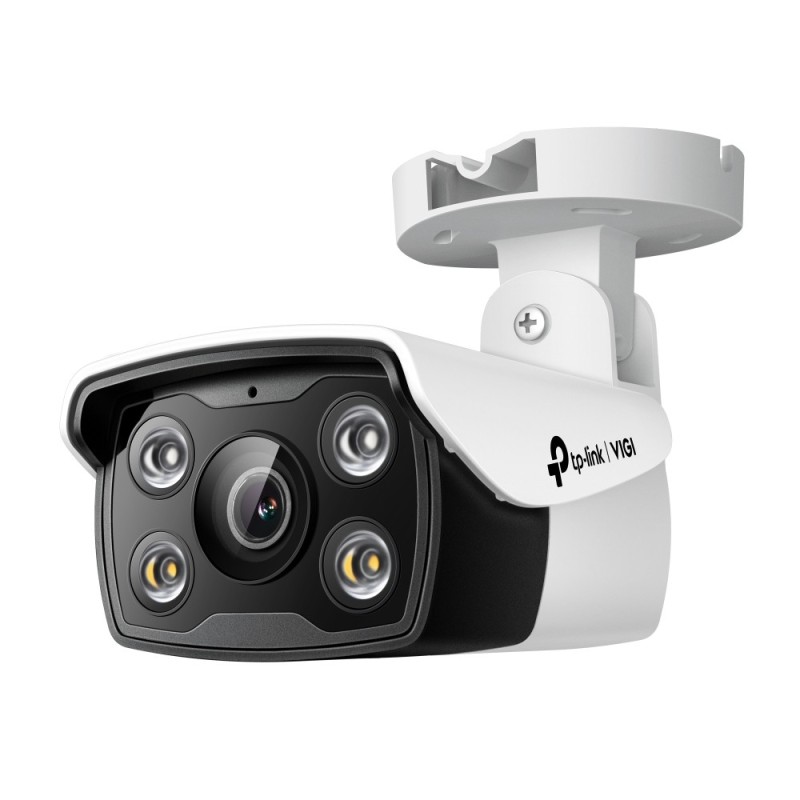

TP-Link VIGI C340 Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole

TP-Link VIGI C340. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product color: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 1/3". Detect distance: 2519.7" (64 m), Observe distance: 1063" (27 m), Recognize distance: 511.8" (13 m)

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Day/night mode	Yes
Mounting type	Ceiling/Wall/Pole
Product color	Black, White
Form factor	Bullet
LED indicators	Yes
Housing material	Plastic
International Protection (IP) code	IP66
Minimum illumination	0.005 lx
Lens viewing angle, horizontal	102°
Lens viewing angle, vertical	55°
Lens viewing angle, diagonal	122°
Tilt angle range	-90 - 90°
Pan range	-90 - 90°
Camera shutter speed	1/3 - 1/10000 s
Number of Privacy masking areas	4
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/3"
Progressive scan	Yes
Number of lenses	1
Detect distance	2519.7" (64 m)
Observe distance	1063" (27 m)
Recognize distance	511.8" (13 m)
Maximum aperture number	1.6
Identify distance	236.2" (6 m)
Fixed focal length	0.11" (2.8 mm)
Night vision	Yes
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	2
Infra-red wavelength	850 nm
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video formats supported	H.264, H.264+, H.265, H.265+
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate	30 fps
Image quality adjustment	Brightness, Contrast, Mirror, Saturation
Privacy masking	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	256 Kbps - 4 Mbps
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Region of Interest (ROI) encoding	Yes
Smart IR	Yes
3D positioning	Yes
Built-in speaker(s)	Yes
Audio system	2-way
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Sample rate	8 kHz
Signal-to-Noise Ratio (SNR)	52 dB
Built-in microphone	Yes
Bit rate range	0 - 64 Kbit/s
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af, IEEE 802.3at
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Live view	Yes
Number of simultaneous live view channels	3 channels
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Password protection	Yes
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Automatic Network Replenishment (ANR)	Yes
Network access storage (NAS)	Yes
Web browser	Yes
Reset button	Yes
Power source type	DC, PoE
Power consumption (typical)	3.4 W
Power consumption (max)	7 W
DC output voltage	12
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	6.85" (174 mm)
Height	2.76" (70 mm)
Length	3.07" (78 mm)
Weight	9.88 oz (280 g)
Package width	5.04" (128 mm)
Package depth	8.58" (218 mm)
Package height	4.06" (103 mm)
Package weight	15 oz (424 g)
Package type	Box
Compliance certificates	BSMI, CE, KC
Number of cameras	1
Mounting kit	Yes
Manual	Yes
Sustainability compliance	Yes
