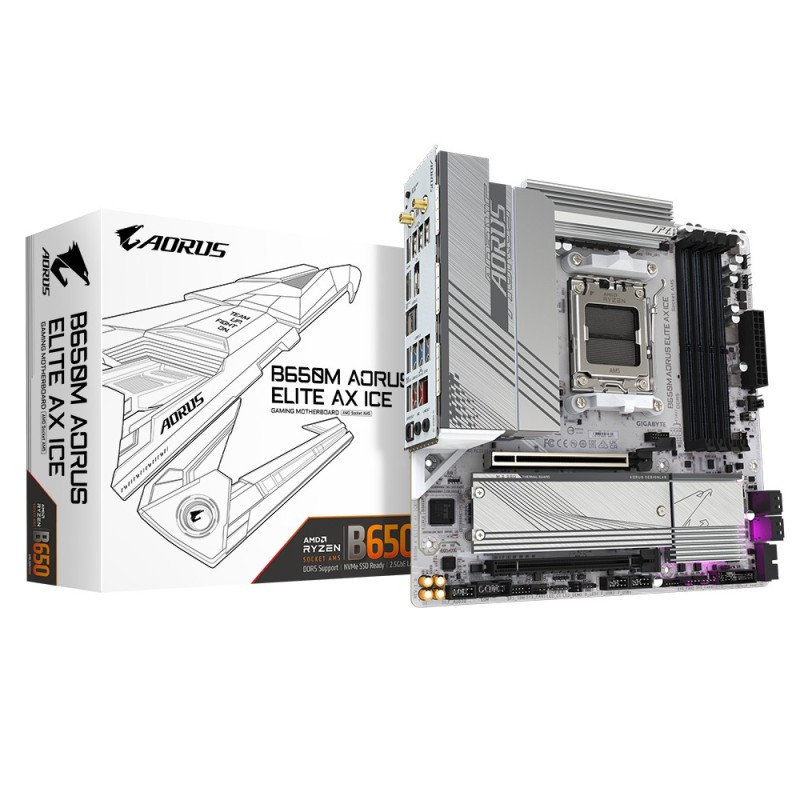

GIGABYTE B650M AORUS ELITE AX ICE motherboard AMD B650 Socket AM5 micro ATX
  • GIGABYTE B650M AORUS ELITE AX ICE motherboard AMD B650 Socket AM5 micro ATX
  • GIGABYTE B650M AORUS ELITE AX ICE motherboard AMD B650 Socket AM5 micro ATX
  • GIGABYTE B650M AORUS ELITE AX ICE motherboard AMD B650 Socket AM5 micro ATX

GIGABYTE B650M AORUS ELITE AX ICE motherboard AMD B650 Socket AM5 micro ATX

EE3D8B21F9

GIGABYTE B650M AORUS ELITE AX ICE mATX Mainboard Sockel AM5 HDMI/DP/USB-C/WIFI6E

€181.78
Tax included
Quantity
Out-of-Stock

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Notify me when available
Description
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Supported memory typesDDR5-SDRAM
Number of memory slots4
Maximum internal memory256 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Supported memory clock speed (max)8000 MHz
Unbuffered memoryYes
Maximum internal memory per slot64 GB
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 10
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
HDCPYes
DirectX version12.0
Discrete graphics supportYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
USB 3.2 Gen 2x2 connectors1
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors4
TPM connectorYes
Serial port headers1
12V power connectorYes
Number of water pump connectors2
RGB LED pin headerYes
Number of RGB LED pin headers5
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Line-inYes
S/PDIF out portYes
Digital audio optical out1
WiFi-AP antenna jack2
Wi-FiYes
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller modelRealtek RTL8852CE
BluetoothYes
Bluetooth version5.3
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B650
Audio output channels7.1 channels
Audio chipRealtek ALC897
Product colorWhite
PC health monitoringFan, Temperature, Voltage, Water cooling
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
PCI Express x16 (Gen 4.x) slots2
Number of M.2 (M) slots2
1st M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size25110
2nd M.2 highest PCI Express generation4.0
BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Country of originChina
Quantity per shipping (inner) case1 pc(s)
Battery weight0.106 oz (3 g)
Lithium weight per battery0.00247 oz (0.0700 g)
Number of battery cells1
Battery capacity220 mAh
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Package width10.6" (270 mm)
Package depth10.6" (268 mm)
Package height2.68" (68 mm)
Package weight4.17 lbs (1.89 kg)
Width9.61" (244 mm)
Depth9.61" (244 mm)
Height1.38" (35 mm)
Batteries includedYes
Antenna includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Warranty period3 year(s)
Product Details
EE3D8B21F9
Notify me when available

Specific References

EAN13
4719331859336
