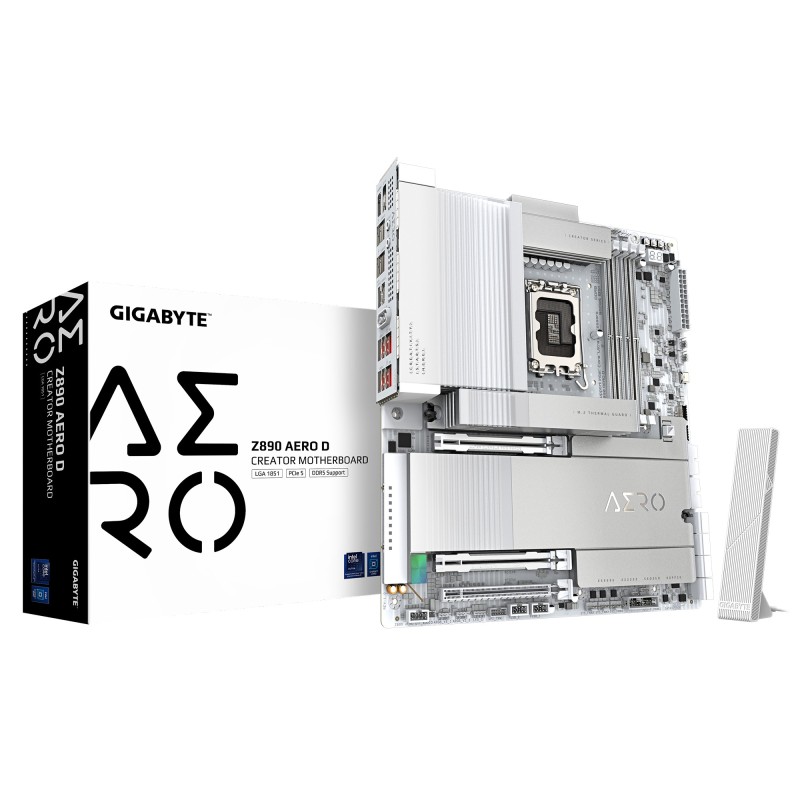

GIGABYTE Z890 AERO D motherboard Intel Z890 LGA 1851 (Socket V1) Extended ATX

GIGABYTE Z890 AERO D. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Marvell AQtion AQC113C, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: Intel

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	256 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7800,7950,8200,8266,8400,8600,8800,8933,9066,9200,9333,9466,9500 MHz
Supported memory clock speed (max)	9500 MHz
Unbuffered memory	Yes
Maximum internal memory per slot	64 GB
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	8
Number of storage drives supported	12
RAID support	Yes
RAID levels	0, 1, 5, 10
Parallel processing technology support	Not supported
DirectX version	12.0
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	8
USB 3.2 Gen 2x2 connectors	2
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	6
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	2
TPM connector	Yes
Thunderbolt headers	1
Number of water pump connectors	2
RGB LED pin header	Yes
Number of RGB LED pin headers	4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Headphone outputs	1
Line-in	Yes
Thunderbolt ports quantity	2
WiFi-AP antenna jack	2
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet
LAN controller	Marvell AQtion AQC113C
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE200
Bluetooth	Yes
Bluetooth version	5.4
Component for	PC
Motherboard form factor	Extended ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Audio output channels	2.0 channels
Audio chip	ESS ES9260
Product color	White
PC health monitoring	Fan, Noise, Temperature, Voltage
Windows operating systems supported	Windows 11 x64
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
Number of M.2 (M) slots	4
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	25110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	22110
4th M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Clear CMOS button	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Battery weight	0.106 oz (3 g)
Lithium weight per battery	0.00247 oz (0.0700 g)
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	15.7" (400 mm)
Package depth	13.2" (335 mm)
Package height	16.9" (430 mm)
Package weight	8.82 lbs (4 kg)
Width	12" (305 mm)
Depth	11.2" (285 mm)
Height	1.38" (35 mm)
Batteries included	Yes
Antenna included	Yes
Screws included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Weight	7.54 lbs (3.42 kg)
Warranty period	3 year(s)
