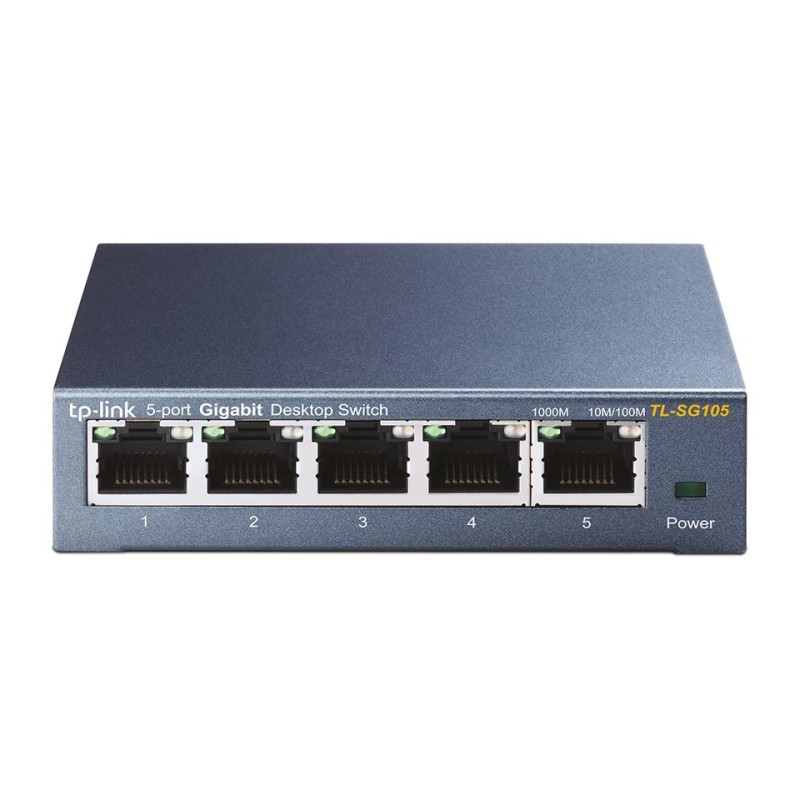

TP-Link TL-SG105 Unmanaged Gigabit Ethernet (10 100 1000) Black
  • TP-Link TL-SG105 Unmanaged Gigabit Ethernet (10 100 1000) Black
  • TP-Link TL-SG105 Unmanaged Gigabit Ethernet (10 100 1000) Black
  • TP-Link TL-SG105 Unmanaged Gigabit Ethernet (10 100 1000) Black

TP-Link TL-SG105 Unmanaged Gigabit Ethernet (10/100/1000) Black

E8B4E08F1D

TL-SG105 Switch

€33.00
Tax included
Quantity
Out-of-Stock

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Notify me when available
Description
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Gigabit Ethernet (copper) ports quantity5
Power connectorDC-in jack
Networking standardsIEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto-negotiationYes
MAC address table2000 entries
Switching capacity10 Gbit/s
Supported data transfer rates10/100/1000Mbps
Forwarding rate7.4 Mpps
Store-and-forwardYes
Maximum data transfer rate2 Gbit/s
Jumbo frames supportYes
Jumbo frames16000
Packet buffer memory1 MB
IGMP snoopingYes
Switching protocolsCSMA/CD
Product colorBlack
LED indicatorsYes
Power sourceDC
Power supply includedYes
Input current0.6 A
Input voltage9 V
Power consumption (max)2.3 W
Power over Ethernet (PoE)No
Connectivity technologyWired
Wi-FiNo
Power LEDYes
Ethernet LANYes
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation7.83 BTU/h
Width3.94" (100 mm)
Depth3.86" (98 mm)
Height0.984" (25 mm)
User guideYes
Rack mount kitYes
Package typeBox
Package width4.92" (125 mm)
Package depth5.04" (128 mm)
Package height3.62" (92 mm)
Package weight13.1 oz (370 g)
CertificationCE, FCC, RoHS
Product Details
TP-Link
E8B4E08F1D
Notify me when available

Specific References

EAN13
6935364021146
