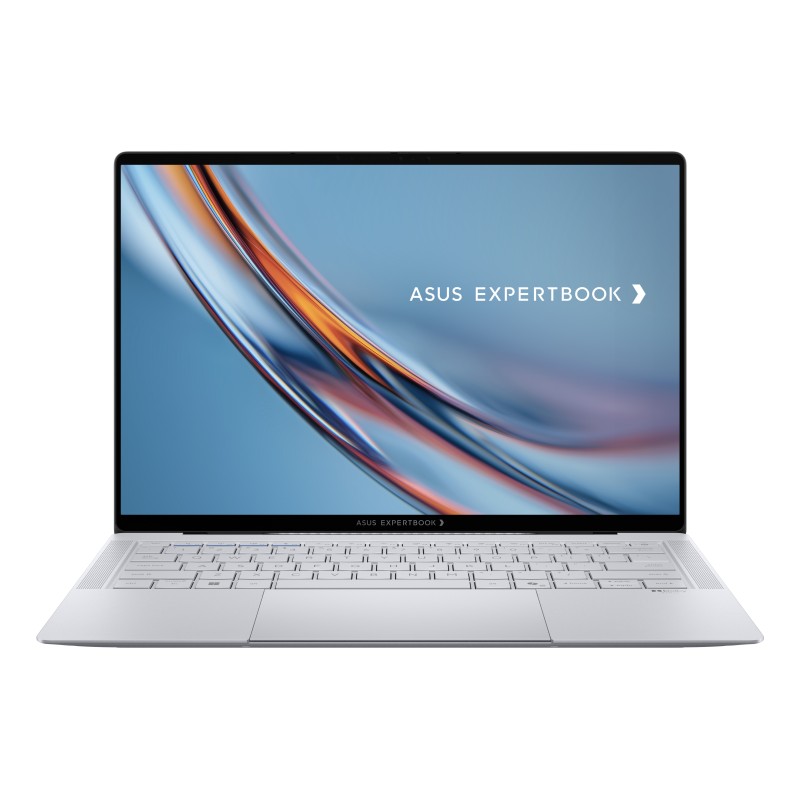

ASUS ExpertBook Ultra B9406CAA-TH0176X Copilot+ PC Intel Core Ultra X7 358H Laptop 14" Touchscreen WQXGA+ 64 GB LPDDR5x-SDRAM 2

ASUS ExpertBook Ultra B9406CAA-TH0176X Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra X7, Processor model: 358H. Display diagonal: 14", HD type: WQXGA+, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Arc B390. Operating system installed: Windows 11 Pro. Product color: Gray

Product type	Laptop
Product color	Gray
Form factor	Clamshell
Color name	1A, Morn Grey
Market positioning	Work
Certified refurbished	No
Display diagonal	14"
Display resolution	2880 x 1800 pixels
Touchscreen	Yes
HD type	WQXGA+
Panel type	OLED
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	700 cd/m²
Maximum display brightness (HDR)	1600 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Display response rise/fall	0.2 ms
Maximum refresh rate	120 Hz
High Dynamic Range (HDR) supported	Yes
Processor family	Intel Core Ultra X7
Processor manufacturer	Intel
Processor model	358H
Processor generation	Intel® Core™ Ultra (Series 3)
Processor cores	16
Processor threads	16
Processor boost frequency	4.8 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core base frequency	1.9 GHz
Efficient-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	1500 MHz
Processor cache	18 MB
Processor cache type	Smart Cache
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	50 TOPs
GPU performance up to	122 TOPs
Internal memory	64 GB
Maximum internal memory	64 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Total storage capacity	2 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	2 TB
SSD capacity	2 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	No
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc B390
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Audio system	Dolby Atmos
Built-in microphone	Yes
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	6.0
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard layout	QWERTZ
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Microsoft Copilot	Yes
Pre-installed software	MyASUS\nASUS MyExpert (Not supported in China, 16GB RAM or higher) AI ExpertMeet (China only)
Trial software	Microsoft 365 30 days
Battery capacity	70 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
USB Type-C charging port	Yes
AC adapter power	90 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Power Delivery	Yes
Fingerprint reader	Yes
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS
Compliance certificates	RoHS, REACH
Sustainability certificates	ENERGY STAR, Forest Stewardship Council (FSC) Mix, EPEAT Gold, EPEAT Climate +, TCO
Weight	2.4 lbs (1.09 kg)
Width	12.2" (310.9 mm)
Depth	8.38" (212.8 mm)
Height (front)	0.429" (1.09 cm)
Height (rear)	0.646" (1.64 cm)
Package width	15.4" (390 mm)
Package depth	5.03" (127.8 mm)
Package height	11.4" (290 mm)
AC adapter included	Yes
Bag included	Yes
I/O ports	2x USB 3.2 Gen 2 Type-A\n2x Thunderbolt™ 4, compliant with USB4, support display / power delivery, 1x HDMI 2.1 TMDS\n1x 3.5mm Combo Audio Jack
