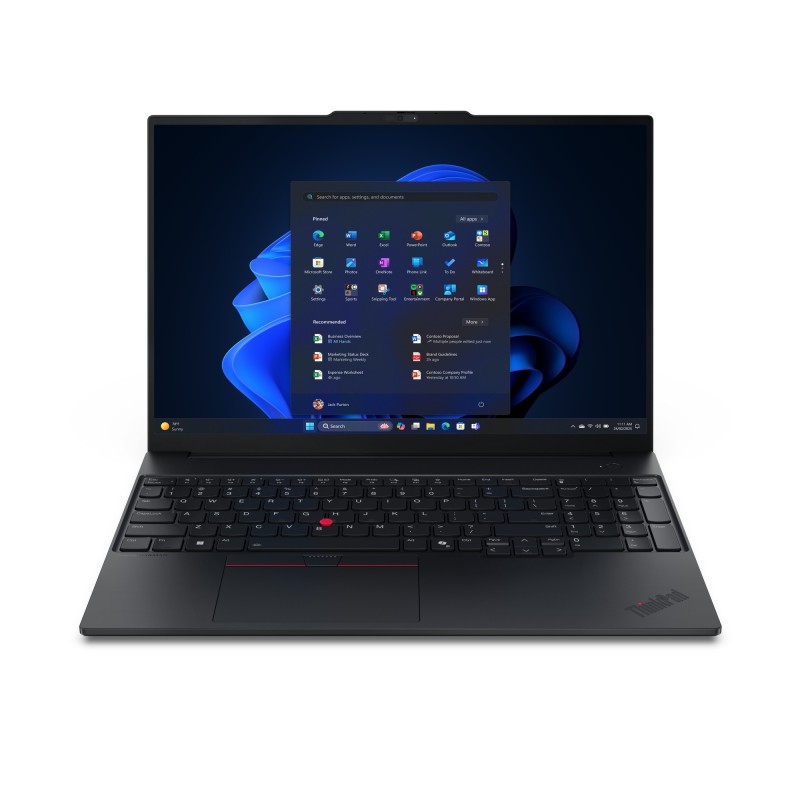

Lenovo ThinkPad E16 Gen 3 (Intel) Intel Core Ultra 7 255H Laptop 16" WQXGA 32 GB DDR5-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax)

Lenovo ThinkPad E16 Gen 3 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 16", HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Pro. Product color: Black. Weight: 3.59 lbs (1.63 kg)

Product type	Laptop
Product color	Black
Form factor	Clamshell
Color name	Black
Housing material	Aluminum
Market positioning	Business
Display diagonal	16"
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
RGB color space	NTSC
Color gamut	45%
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1200:1
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	255H
Processor generation	Intel Core Ultra (Series 2)
Processor cores	16
Processor threads	16
Processor boost frequency	5.1 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.1 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	2 GHz
Efficient-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Processor cache type	Smart Cache
Processor base power	28 W
Maximum turbo power	115 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI datatype support on NPU	FP16, FP32, Int8
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Total processor performance up to	96 TOPs
NPU performance up to	13 TOPs
GPU performance up to	74 TOPs
Internal memory	32 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 32 GB
Memory slots	2x SO-DIMM
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2242 (22 x 42 mm)
Card reader integrated	No
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc 140T
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Audio system	Dolby Atmos
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
Near Field Communication (NFC)	No
WWAN	Not installed
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
Motherboard chipset	Intel SoC
Numeric keypad	Yes
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Full-size keyboard	Yes
Keyboard language	German
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German
Bundled software	Lenovo AI Now
Battery capacity	64 Wh
Battery technology	Lithium-Ion (Li-Ion)
USB Type-C charging port	Yes
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Compliance certificates	RoHS
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP
Weight	3.59 lbs (1.63 kg)
Width	14" (356 mm)
Depth	9.8" (249 mm)
Height (front)	0.398" (1.01 cm)
Height (rear)	0.673" (1.71 cm)
AC adapter included	Yes
