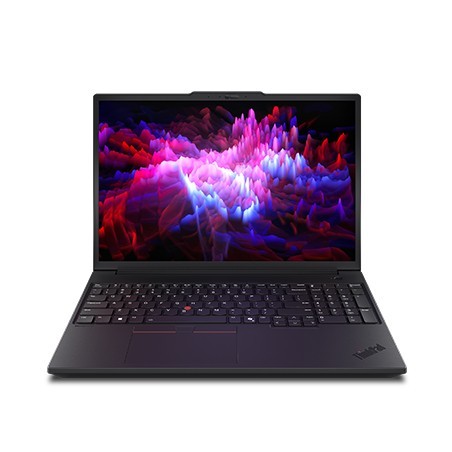

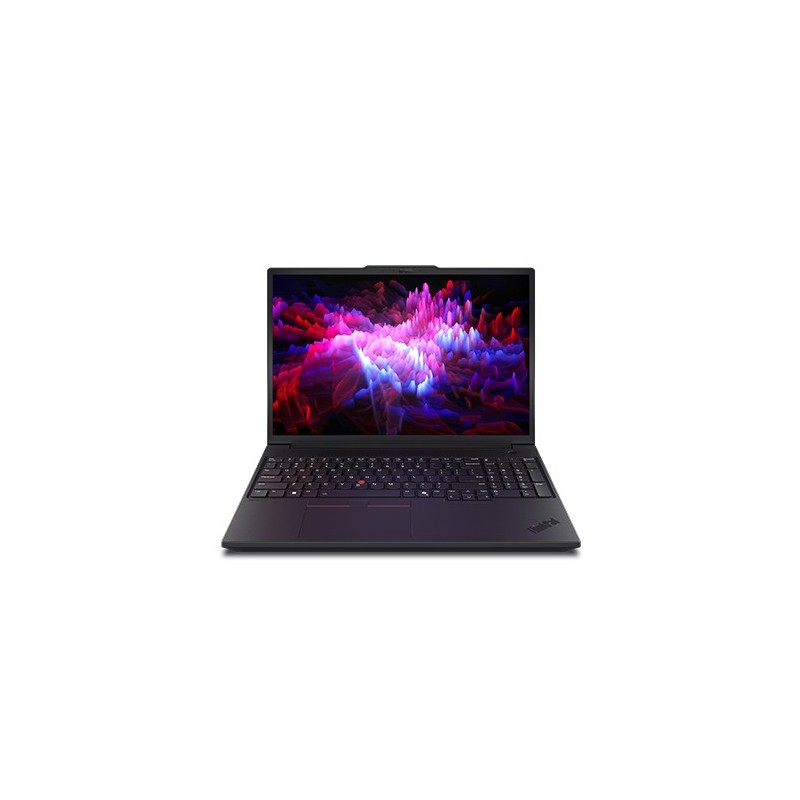

Lenovo ThinkPad P16v Gen 3 (Intel) Intel Core Ultra 7 255H Mobile workstation 16" WUXGA 32 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX

Lenovo ThinkPad P16v Gen 3 (Intel). Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 16", HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA RTX PRO 2000 Blackwell. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Mobile workstation
Product color	Black
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Display back cover material	Aluminum
Display diagonal	16"
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
RGB color space	sRGB
Color gamut	100%
Maximum refresh rate	60 Hz
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	255H
Processor generation	Intel Core Ultra (Series 2)
Processor cores	16
Processor threads	16
Processor boost frequency	5.1 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.1 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	2 GHz
Efficient-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Processor base power	28 W
Maximum turbo power	115 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Total processor performance up to	96 TOPs
NPU performance up to	13 TOPs
GPU performance up to	74 TOPs
Internal memory	32 GB
Maximum internal memory	96 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Total storage capacity	512 GB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 5.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	Yes
Compatible memory cards	SD
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX PRO 2000 Blackwell
On-board graphics card model	Intel Arc 140T
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
Near Field Communication (NFC)	No
WWAN	Not installed
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
Motherboard chipset	Intel SoC
Numeric keypad	Yes
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Keyboard language	German
Operating system installed	Windows 11 Pro
Operating system language	German
Bundled software	Lenovo AI Now
Battery capacity	90 Wh
USB Type-C charging port	Yes
USB Type-C required charging power (min)	140 W
USB Type-C required charging power (max)	140 W
AC adapter power	140 W
USB Power Delivery	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight	4.63 lbs (2.1 kg)
Width	14.2" (361.5 mm)
Depth	9.79" (248.6 mm)
Height (front)	0.504" (1.28 cm)
Height (rear)	0.772" (1.96 cm)
AC adapter included	Yes
