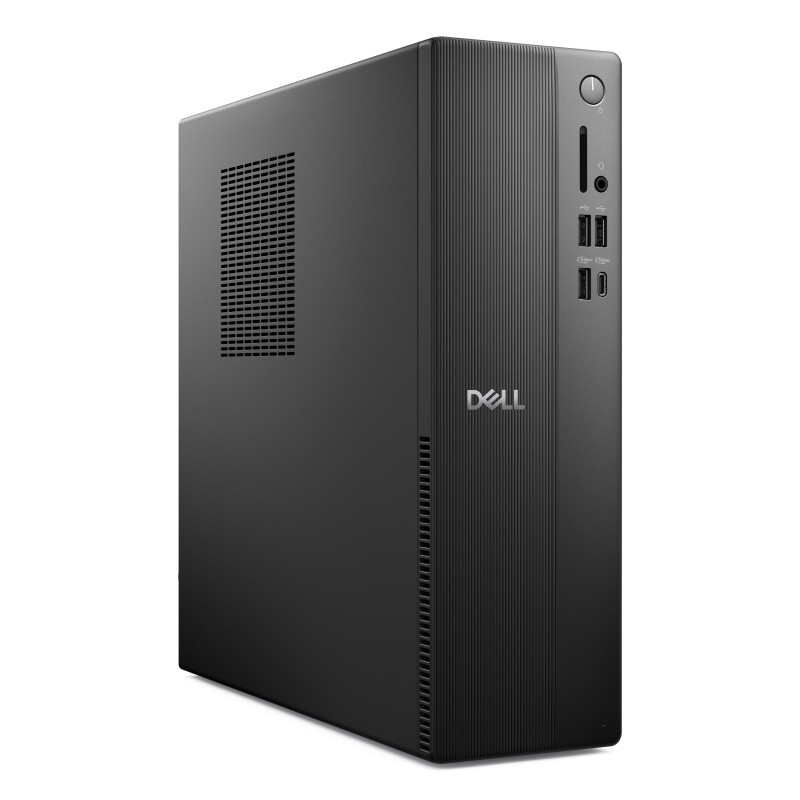

DELL Pro QVS1260 Intel Core Ultra 5 225 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Slim PC PC Black

DELL Pro QVS1260. Processor family: Intel Core Ultra 5, Processor model: 225. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: Slim PC. Product type: PC. Product color: Black

Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	225
Processor generation	Intel Core Ultra (Series 2)
Processor cores	10
Processor threads	10
Processor boost frequency	4.9 GHz
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Performance-core base frequency	3.3 GHz
Efficient-core base frequency	2.7 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	65 W
Maximum turbo power	121 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	23 TOPs
NPU performance up to	13 TOPs
GPU performance up to	4 TOPs
Internal memory	16 GB
Maximum internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x DIMM
Buffered memory type	Unregistered (unbuffered)
Memory data transfer rate	4800 MT/s
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 3.0
NVMe	Yes
SSD form factor	M.2
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Product type	PC
Motherboard chipset	Intel Q670
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Realtek RTL8111KD
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	MediaTek
WLAN controller model	MediaTek MT7920
Antenna type	2x2
Bluetooth	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.4
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Number of rear USB ports	4
Number of front USB ports	4
Number of SATA III connectors	1
PCI Express x1 slots	3
PCI Express x16 slots	1
Power supply	180 W
Power supply input voltage	90 - 264 V
Power supply input frequency	47 - 63 Hz
80 PLUS certification	80 PLUS Bronze
Chassis type	Slim PC
Product color	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	McAfee® Business Protection 1-year,Activate Your Microsoft 365 For A 30 Day Trial
Display included	No
Audio chip	Realtek ALC3204
Audio system	High Definition Audio
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating vibration	0.26 G
Non-operating vibration	1.37 G
Operating shock	40 G
Non-operating shock	105 G
Width	3.74" (95 mm)
Depth	11.5" (293 mm)
Height	11.9" (303.5 mm)
Cables included	AC
Total carbon footprint (kg of CO2e)	143
Carbon emissions, manufacturing (kg of CO2e)	68.068
Carbon emissions, logistics (kg of CO2e)	9.152
Carbon emissions, energy usage (kg of CO2e)	62.777
Carbon emissions, end-of-life (kg of CO2e)	3.003
PAIA version	GaBi version 1, 2025
MU-MIMO	Yes
