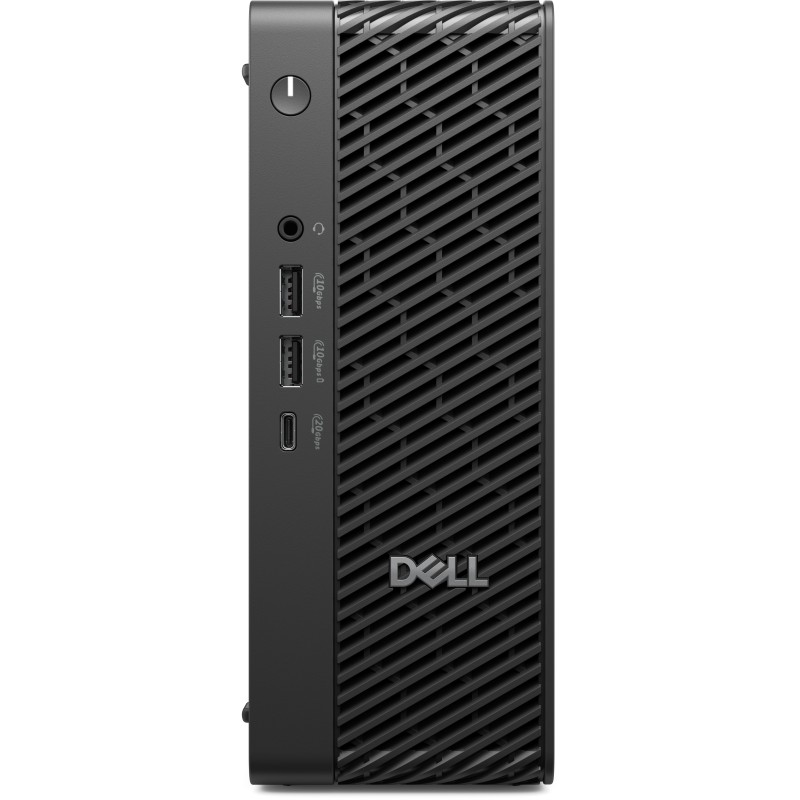

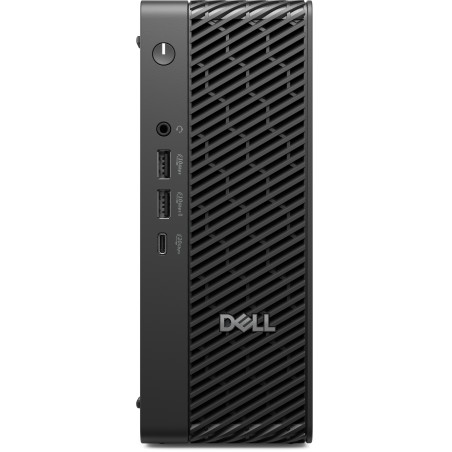

DELL Pro Max FCM2250 Intel Core Ultra 5 245 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Micro PC Mini PC Black

DELL Pro Max FCM2250. Processor family: Intel Core Ultra 5, Processor model: 245. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 280 W. Chassis type: Micro PC. Product type: Mini PC. Weight: 5.6 lbs (2.54 kg). Product color: Black

Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	245
Processor generation	Intel Core Ultra (Series 2)
Processor cores	14
Processor threads	14
Processor boost frequency	5.1 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5.1 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Performance-core base frequency	3.5 GHz
Efficient-core base frequency	3 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	65 W
Maximum turbo power	121 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	29 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Non-ECC	Yes
Memory data transfer rate	6400 MT/s
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD memory type	TLC
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Self-Encrypting Drive (SED)	Yes
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel® I219-LM
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE200
Antenna design	Internal
Bluetooth	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
DisplayPorts quantity	3
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
DC-in jack	Yes
Power adapter barrel connector	7.4 mm
PCI Express x8 (Gen 4.x) slots	2
Power supply	280 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
Chassis type	Micro PC
Product color	Black
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Intel® vPro™ Platform Eligibility	Yes
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Display included	No
Audio chip	Realtek ALC3204
Audio system	High Definition Audio
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating vibration	0.66 G
Non-operating vibration	1.3 G
Operating shock	110 G
Non-operating shock	160 G
Width	3.12" (79.3 mm)
Depth	7.01" (178 mm)
Height	8.11" (206 mm)
Weight	5.6 lbs (2.54 kg)
Cables included	AC
Sustainability certificates	ENERGY STAR, TCO
Total carbon footprint (kg of CO2e)	183
Carbon emissions, manufacturing (kg of CO2e)	63.318
Carbon emissions, logistics (kg of CO2e)	3.66
Carbon emissions, energy usage (kg of CO2e)	114.741
Carbon emissions, end-of-life (kg of CO2e)	1.28
PAIA version	GaBi version 1, 2024
MU-MIMO	Yes
